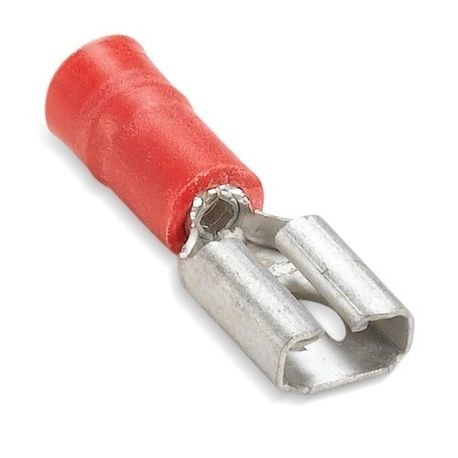

3M 051128-58935 Scotchlok Insulated Standard Female Disconnect Terminal 22 to 18 AWG

Product Description

The 3M Scotchlok 051128-58935 Insulated Standard Female Disconnect is designed for reliable and efficient wire termination, offering both durability and ease of use in a variety of electrical applications.

• Durable brass construction with tin plating for corrosion resistance.
• Red vinyl-insulated, butted seam with an interlocking barrel ensures secure wire insertion and retention.
• Quick and easy wire disconnections with dents and rolled edges for superior holding force.

Product Highlights

This terminal supports a conductor size from 22 to 18 AWG and is equipped to handle voltages up to 1000 VAC, making it suitable for a range of installation environments including building fixtures, luminaires, and signs.

Product Information

Standard Information

• Brand: 3M
• Type: Insulated Standard Female Disconnect
• Conductor Size: 22 to 18 AWG

Technical Specifications

• Material: Brass
• Finish: Tin Plated
• Tab Size: 0.25 in W x 0.032 in THK
• Dimensions: 0.83 in L
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Voltage Rating: 600/1000 VAC
• Mounting Type: Free hanging (in-line)
• Approval: CSA Certified, RoHS Compliant, UL Listed
