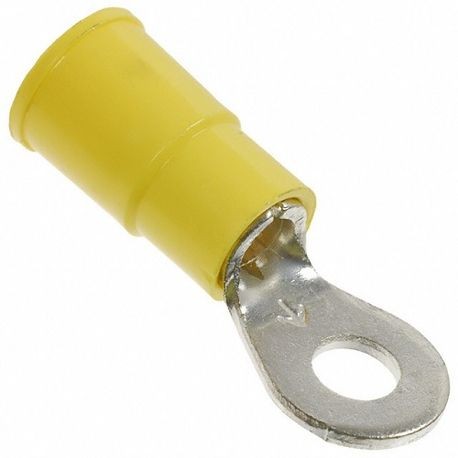

3M 051128-58758 Insulated Standard Ring Terminal 12 to 10 AWG Conductor

Product Description

The 3M Scotchlok Insulated Standard Ring Terminal, MPN 051128-58758, is designed for use with 12 to 10 AWG conductors. This terminal offers a reliable connection for various applications, including building fixtures and luminaires.

• Yellow vinyl insulation ensures a secure fit.
• Standard ring tongue design fits around the stud.
• Made from electrolytic copper for excellent conductivity.

Product Highlights

These terminals are ideal for reliable performance and corrosion resistance, featuring a butted seam barrel and a funnel-designed sleeve for easy wire insertion.

Product Information

Standard Information

• Manufacturer: 3M
• Type: Insulated Standard

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Length: 1.03 inches
• Barrel Size: 0.135 inches ID x 0.25 inches long
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Stud Size: #10
• Application: For building fixtures or luminaires, wires, and signs
• Standard & Approvals: LR22190 CSA Certified, RoHS Compliant, UL Listed
