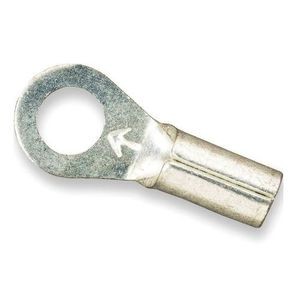

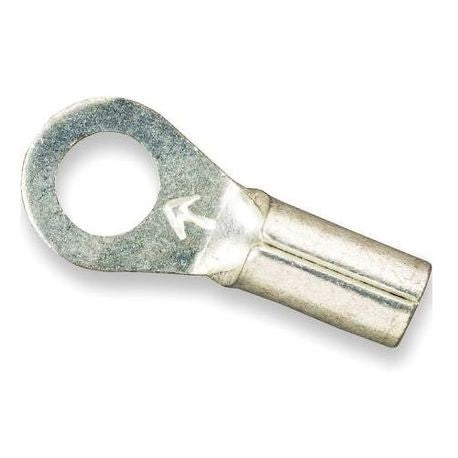

3M 051128-58682 Scotchlok Non-Insulated Standard Ring Terminal 12 to 10 AWG Conductor

Product Description

The 3M Scotchlok 051128-58682 is a non-insulated standard ring terminal designed for twelve to ten AWG conductors. This terminal features a brazed seam barrel for a secure connection, ensuring reliable performance for various wiring applications.

• Made from electrolytic copper with tin plating for corrosion resistance.
• Beveled mouth for easy insertion of wires.
• Standard-style ring fits around the stud effectively.

Product Highlights

This product is suitable for use with building fixtures, luminaires, wires, and signs, providing a dependable solution for electrical connections.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Type: Non-Insulated Standard
• Conductor Size: 12 to 10 AWG
• Length: 0.73 inches
• Stud Size: #10
• Tongue Type: Ring
• Tongue Size: 0.38 inches W x 0.04 inches T
• Barrel Size: 0.135 inches ID x 0.25 inches L
• Voltage Rating: 600/1000 VAC
• Temperature Rating: 347 degrees F
• Finish: Tin Plated
• Material: Copper
• Features: Includes 50 terminals per bottle, 500 terminals per case.
