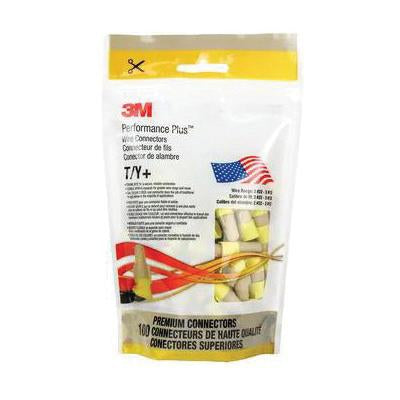

3M 051128-55218 T/Y+pouch Tan / Yellow Wire Connector 100 per box

Product Description

The 3M tan / yellow wire connector, MPN 051128-55218, is sold 100 per box. These wire connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. They accommodate wire sizes from 22 AWG to 12 AWG and fit into tight spaces.

• Strong bite for a secure, reliable connection
• Flexible spring expands for greater wire range and reuse
• Dual color-coded - one connector does the job of two traditional connectors in the majority of applications

Product Highlights

The 3M T/Y+ wire connectors simplify the selection process, offering a broad wire range and secure connections for various wiring jobs.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 051128-55218

Technical Specifications

• Brand: 3M
• 3M Number: T/Y+POUCH
• Connector Type: Wire Connector
• Color: Tan / Yellow
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 22 AWG
• Voltage Rating: 600 VAC
• Package Quantity: 100 per box
• Case Quantity: 100 per box
• Flame Retardant: Yes
• Cable Type: Solid, Stranded
• Connection Type: Twist-On x Pigtail
• Insulated/Non-Insulated: Insulated
• Insulation Material: Polypropylene/Thermoplastic Elastomer
• Length: 1.03 in
• Width: 0.49 in
• Wire Size: 22 to 12 AWG
• Material: Steel Spring
• Application: For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection
• Shell Style: Winged
• Spring Type: Live-Action/Square Wire
• Standard & Approvals: C22.2 #188 File No M1983 CSA Certified , 2011/65/EU RoHS Compliant, UL 486C UL File No M1983 Listed
