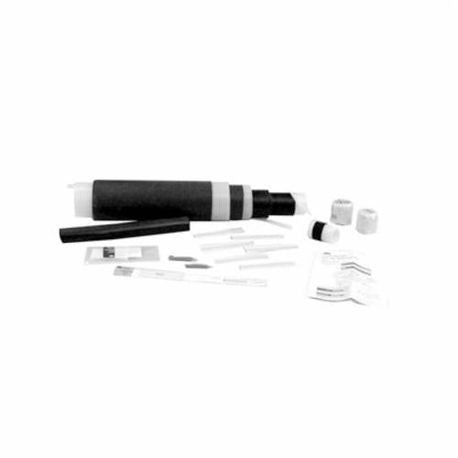

3M 051128-53480 5513A Cold Shrink QS-III Splice Kit 15 kV 2 - 4/0 AWG Conductor

Product Description

The 3M 051128-53480 Splice Kit is an effective solution for joining shielded power cables. This inline splice is designed to work with a range of cables including tape shield, wire shield, and UniShield types. It includes cold shrink technology for quick and reliable installation. The kit is rated for fifteen thousand volts and provides protection against fault currents.

• In-line splice for various cable types
• Cold shrink design ensures fast installation
• Rated for 15,000 amps for fault current protection

Product Highlights

This splice kit is suitable for direct burial installations and provides excellent performance in feeder and distribution circuits. It is engineered to facilitate smooth transitions from shielded to neutral cables.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Voltage Rating: 15 kV
• Splice Length: 28 in
• Conductor Size: 2 to 4/0 AWG
• Insulation Size: 0.64 in - 1.01 in OD
• Temperature Rating: 105 to 140 deg C
• Material: Silicon Rubber
• Connector Type: In-Line
• Color: Black
