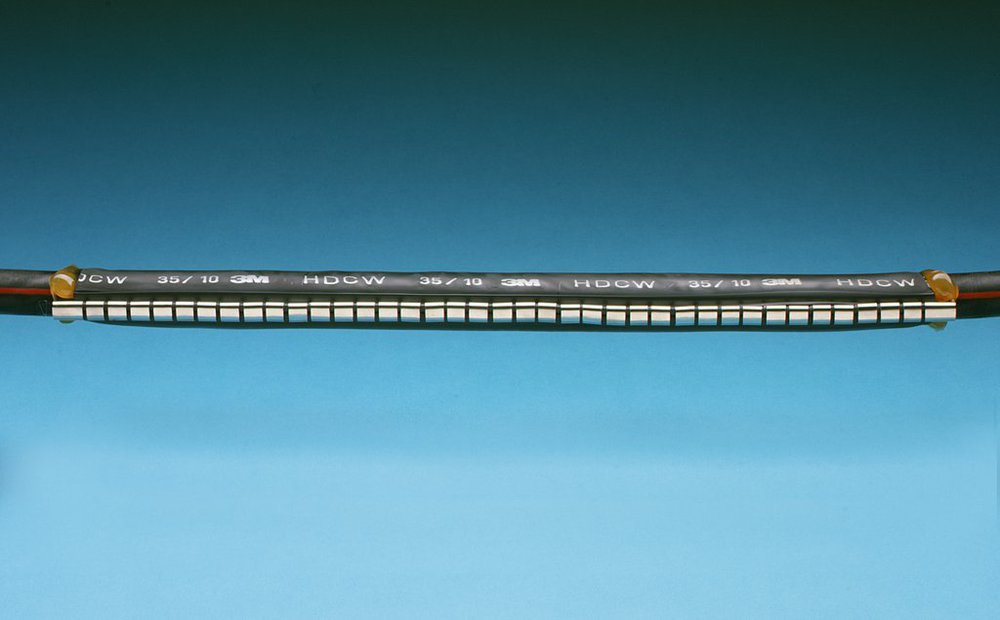

3M 001895-59044 HDCW Adhesive Lined Wraparound Heat Shrink Cable Repair Sleeve

Product Description

The 3M heat shrink cable repair sleeve 001895-59044 is engineered for efficient repair of damaged cable jacketing. This wraparound sleeve serves as insulation for cables and splices up to 1000 volts, and can also repair jacket materials on cables rated up to 35 kV. Constructed with cross-linked polyolefin, it features an adhesive inner layer that ensures moisture protection and a secure bond.

• Suitable for 8 to 2/0 AWG conductor sizes
• Length of 9.8 inches for versatile applications
• Meets ANSI C119.1 requirements and is RoHS compliant

Product Highlights

This product offers a robust solution for cable management in various environments, ensuring reliable performance under mechanical stress.

Product Information

Standard Information

• Brand: 3M
• MPN: 001895-59044

Technical Specifications

• Length: 9.8 inches
• Conductor Size: 8 to 2/0 AWG
• Expanded Insulation Diameter: 1.97 inches
• Recovered Insulation Diameter: 0.32 inches
• Recovered Wall Thickness: 2 mm
• Voltage Rating: 1 to 35 kV
• Material: Polyolefin
• Flammability Rating: 3
• Specific Gravity: 0.88
