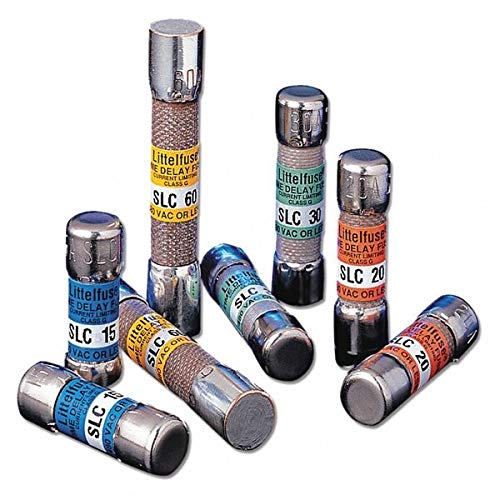

Littelfuse SLC035 Fuse 35A 480VAC Time Delay G Class

Product Description

The Littelfuse SLC035 is a Class G time-delay fuse designed to offer enhanced circuit protection in a compact form. These fuses are engineered to protect electrical components by providing a delay that allows temporary surges to subside, preventing unnecessary fuse blowouts. This medium-acting fuse features a cylindrical body, suitable for high-performance applications in industrial settings.

• Rated for 35A and 480VAC, with 100 kA interrupting capacity.
• Dimensions measure 13/32 inches in diameter and 2-1/4 inches in length.
• Meets UL 248-5 and CSA certification standards.

Product Highlights

Integrates time-delay feature allowing closer sizing to load for better circuit protection.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: SLC035

Technical Specifications

• Amperage Rating: 35A
• Voltage Rating: 480VAC
• Interrupt Rating: 100 kA at 480VAC
• Body Size: 13/32 in Dia x 2-1/4 in L
• Body Type: Cartridge
• Class: G
• Terminal Type: Ferrule
• Mounting Type: Holder
