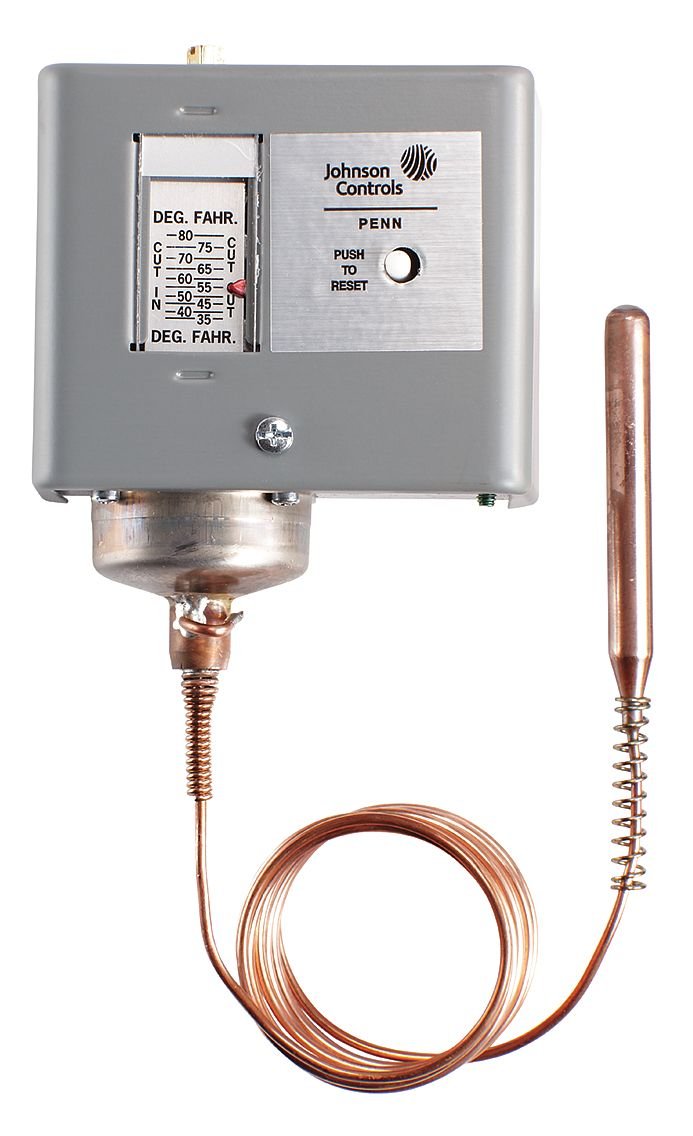

Johnson Controls A70GA-2C Penn Series A70 Four-Wire, Two-Circuit Temperature Control, 35 Degrees to 80 Degrees F, DPST

Product Description

The Johnson Controls A70GA-2C is a reliable four-wire, two-circuit temperature control device with a wide range of applications. This model features an open low and close low switch action, allowing precise temperature regulation from one point seven to twenty-six point seven degrees Celsius. The differential range operates from negative sixteen point one to negative one point one degrees Celsius, ensuring accurate performance for various heating and cooling systems.

• Temperature control range: 35 Degrees to 80 Degrees F
• Includes a remote sensing bulb for accurate measurements
• Snap action SPST switch type with an adjustable differential

Product Highlights

Utilize this thermostat for effective temperature management in industrial and HVAC applications. Compatible with multiple systems such as heating elements and refrigeration units, it features a robust design suitable for various environments.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: A70GA-2C

Technical Specifications

• Voltage: 120/208/240/277/480/600VAC (Main)
• Contact Rating: 120V AC, 208V AC, 240V AC, 277V AC, 480V AC, 600V AC
• Overall Dimensions: 10.5 x 6 x 6 inches
• Number of Switches: 2
• Temperature Scale: Fahrenheit/Celsius
• Enclosure Material: Steel
• Remote Sensing Bulb Length: 3 inches
• Temperature Sensitivity: +/- 2 Degrees F
