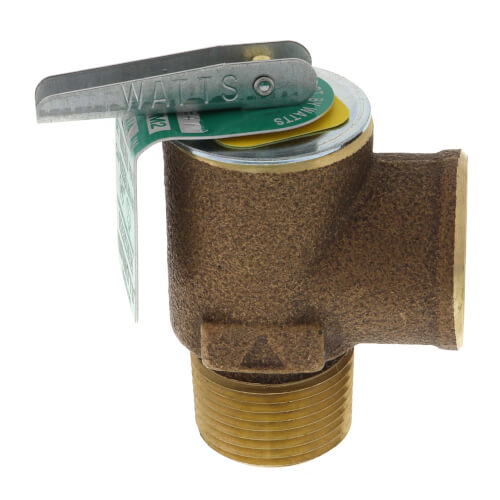

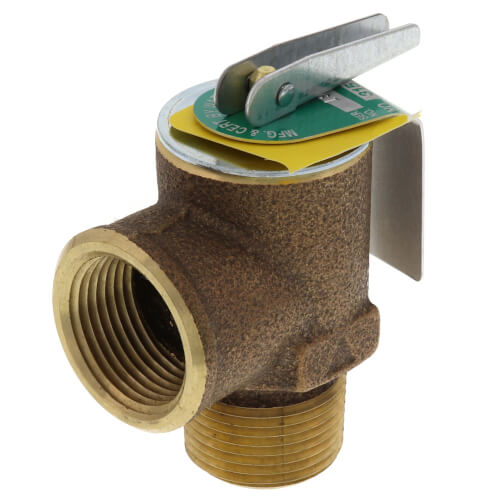

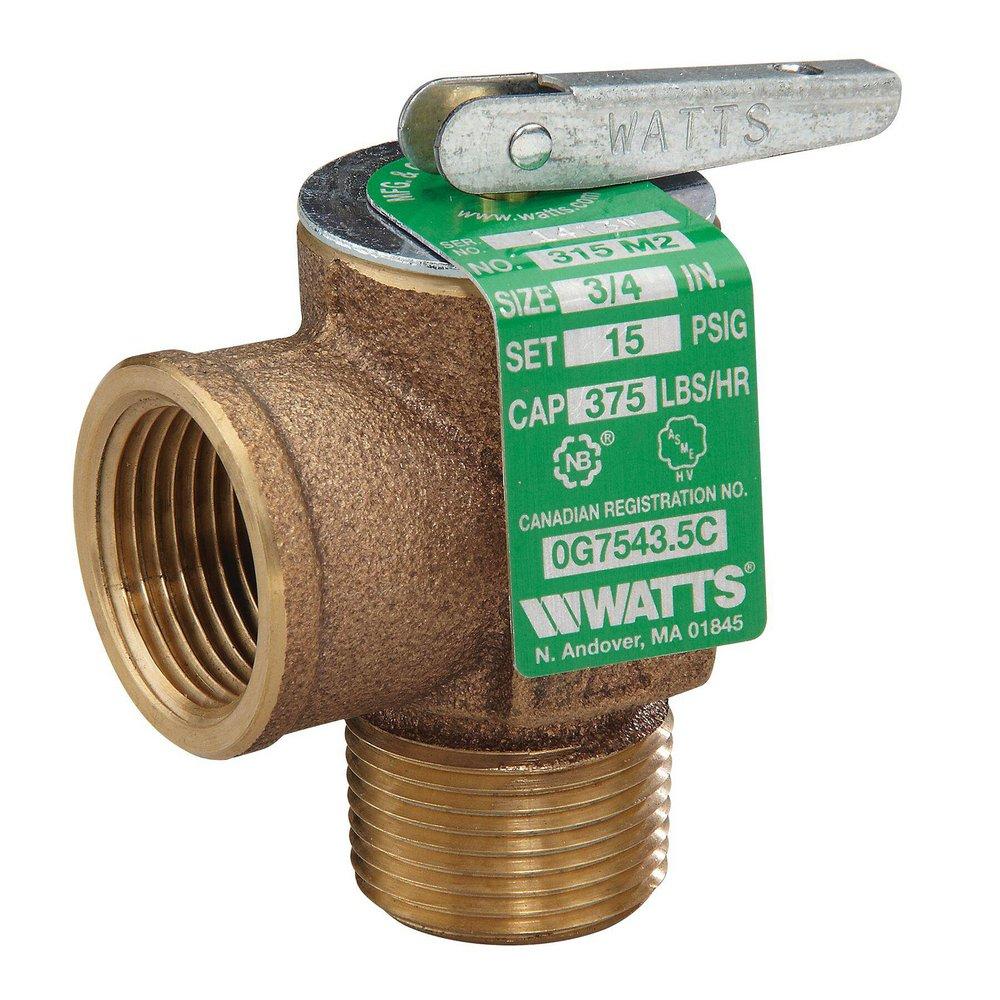

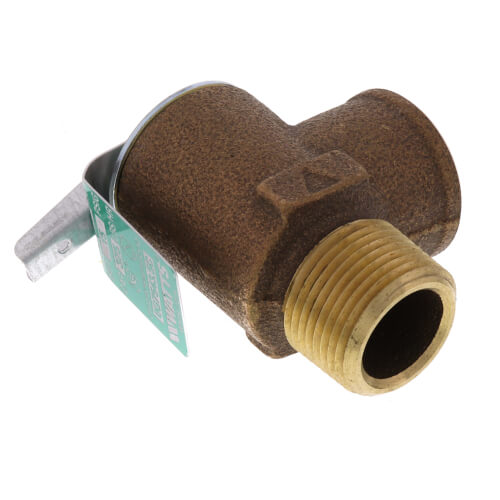

Watts 0342629 Series 315-M2 3/4 in. Bronze MNPT x FNPT 15# 250 Relief Valve

Product Description

The Watts 0342629 Series 315-M2 3/4 inch Bronze MNPT x FNPT 15 psi 250-degree Relief Valve is designed for steam heating boilers and process equipment. This valve includes a bronze body, a stainless steel spring, and a Teflon disc-to-metal seating. It offers high capacity and a positive shut-off.

• High capacity
• Positive shut off
• Non-sticking Teflon disc

Product Highlights

This Watts relief valve is ideal for commercial and industrial applications involving low-pressure steam heating. It features a bronze body, threaded connections, and a reliable Teflon disc to prevent sticking. The valve design ensures high capacity and effective pressure relief.

Product Information

Standard Information

• Brand: Watts
• MPN: 0342629
• Model: Series 315-M2

Technical Specifications

• Material: Bronze
• Size: 3/4 inch
• Inlet Type: MNPT
• Outlet Type: FNPT
• Max Temperature: 250 degrees Fahrenheit
• Connection Type: MPT x FPT
• Pressure Set Point: 15 psi
• Weight: 0.54 lbs
