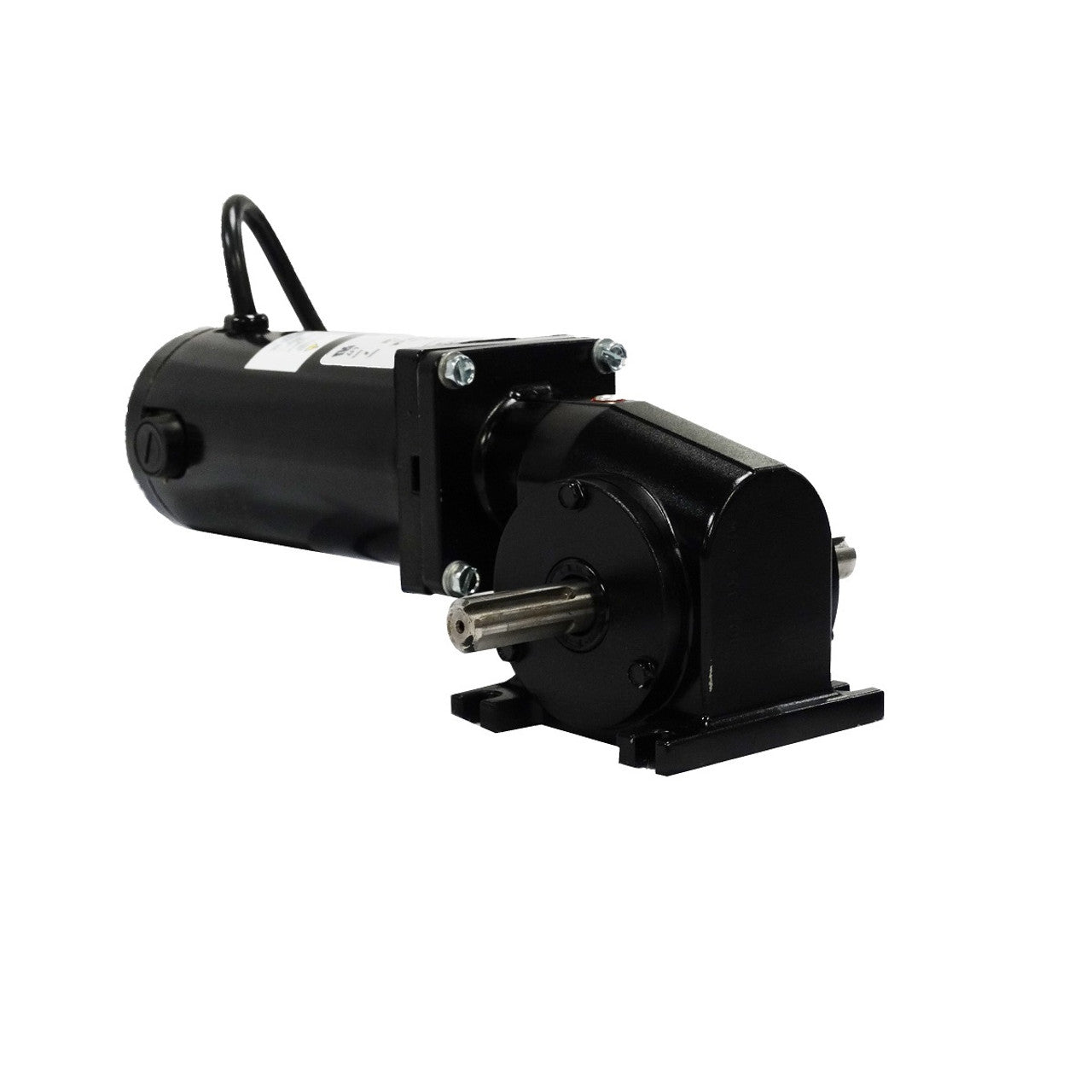

3130-375 RAE | Right Angle Gear Motor - 90VDC, 510 RPM
The G33 Series Single Worm Reduction Right Angle Gearmotor is designed for applications requiring high RPM output in a dependable, rugged design.
Specifications
• Model: 3130-375
• Style: Right Angle
• H.P.: 1/8
• Voltage: 90VDC
• FLA: 1.76
• Output RPM: 510
• Output Torque (Inch pounds): 13
• Shaft: 5/8 (.625") x 1.8 inch useable, keyed
• Gear ratio: 5 to 1
• Enclosure rating: IP55
Detailed Features
• Gearbox Designed to AGMA Standards
• Oil Filled
• Needle Bearings (Gearbox)
• High Energy Ceramic Magnets
• Double Shielded Ball Bearings (Motor)
• Dynamically Balanced Armature
• Reversible Design
• 36” “Cord
• TENV Design
• Externally Replaceable Brushes
• Auto-Hook Tang Type Commutator
• Class “F” Insulation
Cross References:
• Leeson: M1135041
• WEG: GH3305
• Bodine: 4140
• RAE: 3130375
