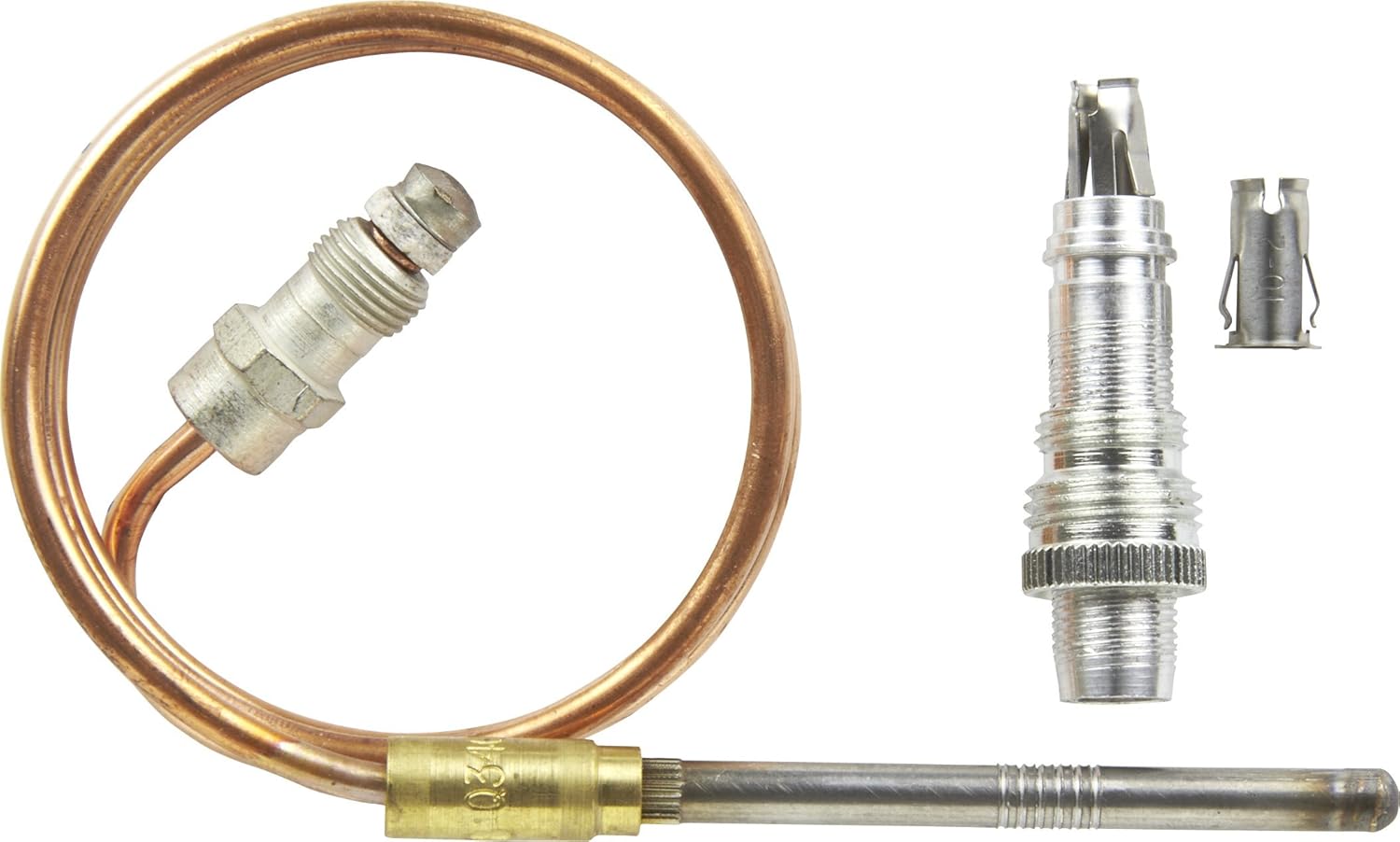

Honeywell Q340A1074 Thermocouple 24 Inches 30 mV

Product Description

The Honeywell Q340A1074 Thermocouple, manufactured by Honeywell International, is a standard coaxial thermocouple designed for use in various Honeywell models. It features a 24-inch probe and operates at 1400 degrees Fahrenheit for hot junctions and 780 degrees Fahrenheit for cold junctions. This thermocouple is suitable for both natural and liquefied petroleum gas applications.

• O.E.M. authorized part

• Fits various Honeywell models

• OEM Part Number Q340A1074

Product Highlights

This Honeywell thermocouple ensures reliable performance in gas-fired heating systems. The push-in clip, split nut, and adapter assembly make it easy to install on pilot burners.

Product Information

Standard Information

• Gas type: Natural and liquefied petroleum gas
• Application: Standing pilot

Technical Specifications

• Model: Q340A1074
• Probe Length: 24 inches
• Voltage Rating: 30 mV
• Open Circuit Output: 26 - 32 mV
• Resistance: 0.02 ohm
• Temperature Range: 1400 degrees Fahrenheit (hot junction), 780 degrees Fahrenheit (cold junction)
• Connection Type: 11/32-inch male connector nut
• Material: Stainless steel outer jacket
