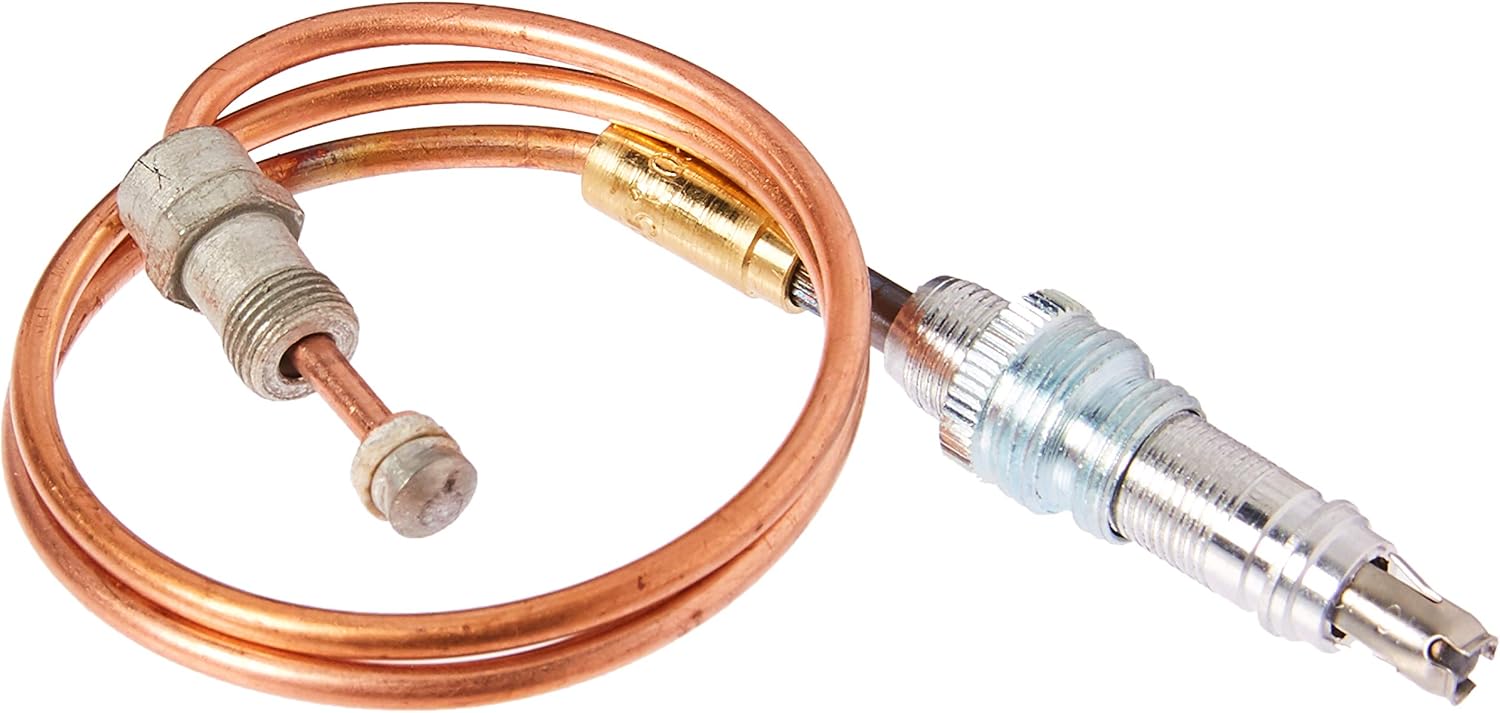

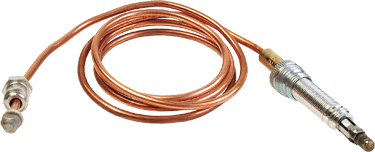

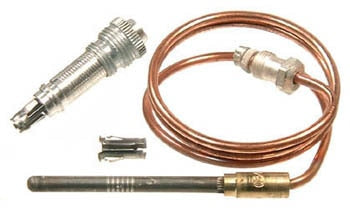

Honeywell Q340A1066 Thermocouple 18 Inches

Product Description

The Honeywell Q340A1066 is a robust thermocouple designed to sense the pilot flame on gas-fired heating systems. With an 18-inch probe and a temperature range of 780 degrees Fahrenheit to 1400 degrees Fahrenheit, this thermocouple ensures reliable measurement and control.

• Designed for standing pilot applications.
• Features a stainless steel outer jacket for durability.
• Provides open circuit output of 26 to 32 millivolts.

Product Highlights

This thermocouple is equipped with an 11/32 inch male connector nut, facilitating easy installation with standard systems. It's suitable for use with natural and liquefied petroleum gases, enhancing versatility across different applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: Q340A1066

Technical Specifications

• Length: 18 inches
• Temperature Range: 780 to 1400 degrees Fahrenheit
• Connector Type: 11/32 inch Male Nut
• Material: Stainless Steel
• Voltage Rating: 30 mV
