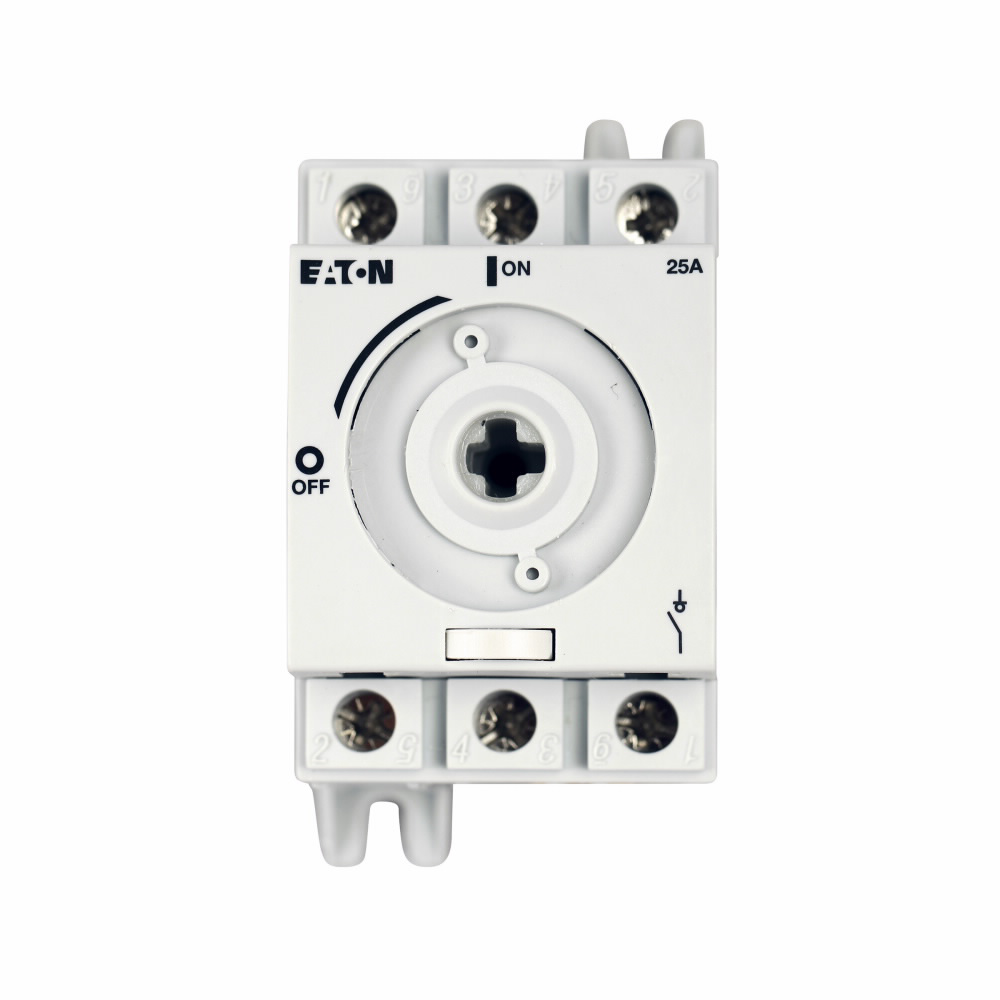

Eaton R5A3030U Rotary Disconnect Switch 30 Amp 600 Volt 3-Pole Din Rail Mount Non-Fusible

Product Description

The Eaton R5A3030U rotary disconnect switch is a reliable power control solution for industrial applications. Featuring a non-fusible design and rated for 30 amps, it is designed for use in three-phase systems operating at up to 600 volts. The switch is suitable for use in machine and control circuits and can be mounted on a DIN rail or directly to a base.

• Non-fusible, three-pole rotary switch
• R5 Series, 600 volts, 30 amps
• DIN rail or base mounting

Product Highlights

The Eaton R5A3030U rotary disconnect switch offers reliable and safe power control with its 30-amp rating and non-fusible, three-pole design. Suitable for industrial environments, it can be used in machine and control circuits at up to 600 volts.

Product Information

Standard Information

• Brand: Eaton
• MPN: R5A3030U

Technical Specifications

• Voltage: 600 volts
• Amperage: 30 amps
• Number of Poles: 3
• Mounting Type: DIN rail/base
• Length: 2.57 inches
• Width: 1.77 inches
• Height: 3.35 inches
• Weight: 0.5 lbs
• Applications: Industrial facilities, factories, power distribution, and control
• Standards/Approvals: UL 508, EN Listed, CSA Certified, CCC Certified, IEC Rated
