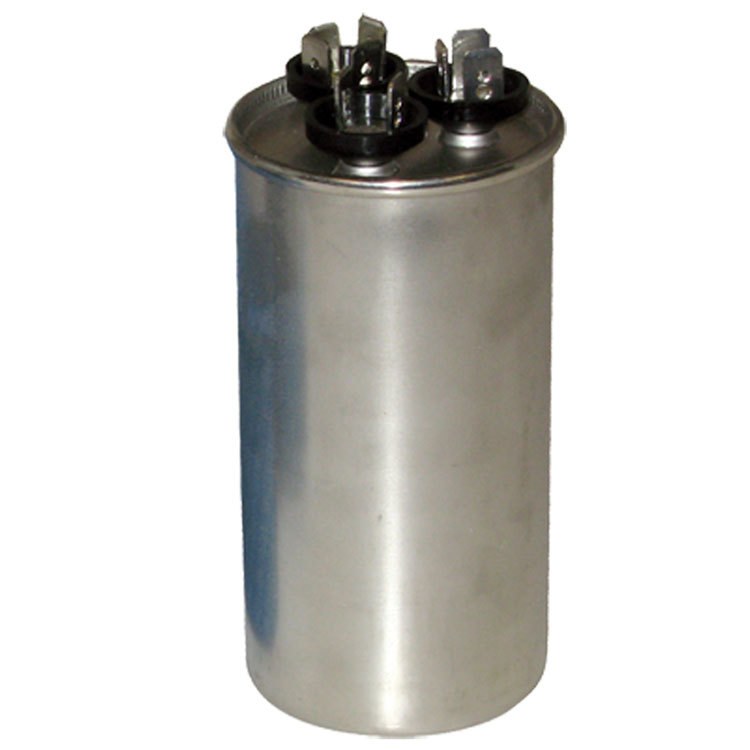

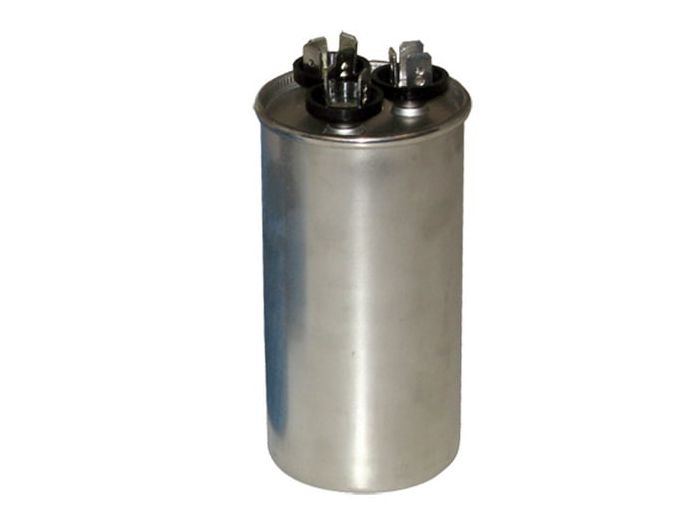

Mars 12264 30/5 MFD 370V Round Capacitor

Product Description

The MARS 12264 dual section motor run capacitor is designed to serve two microfarad applications. It can be used to obtain many other microfarad ratings by making various combinations of parallel connections. It is a non-PCB capacitor with a physical interrupter for safety. The capacitor has UL and CSA listings available.

• Widest selections of ratings in the industry
• Non-PCB capacitors
• Physical interrupter makes capacitors safe

Product Highlights

This dual section run capacitor is perfect for general replacements and has the smallest dimensions available.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 12264
• Country of Origin: MEX

Technical Specifications

• Brand: MARS
• Capacitor MFD µF: 30/5
• Capacitor Type: Run
• Composition: Aluminum
• Cycle/Hertz: 50/60 Hz
• Diameter: 2"
• Height: 2.2
• Shape: Round
• Temperature Range: -40°F to 158°F (-40°C to 70°C)
• Type: Dual Run Capacitor
• UL Listed: Yes
• UL Recognized: Yes
• Voltage: 370 VAC
• Prop 65: Yes
• Product Type: Dual Section Round
• Size: 30/5MFD
• Material: Aluminum Case
• Manufacturer: MARS
• Manufacturer Part Number: 12264
• Capacitance: 30/5 uF
• Case Material: Aluminum
• Domestic/Import: Import
• Specifications: -40 to 70 deg C, 50/60 Hz
