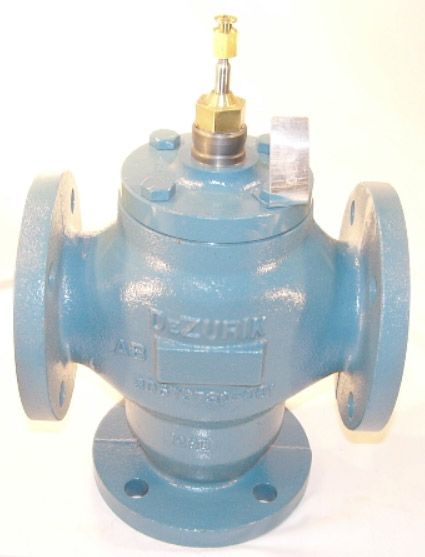

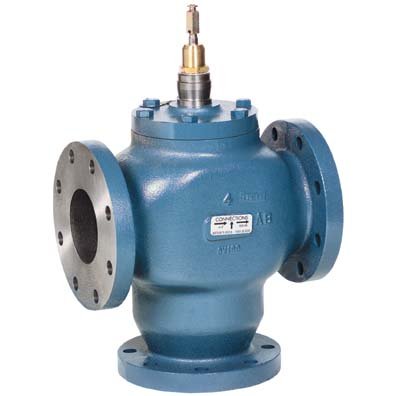

Honeywell V5013C1019 Three-Way Flanged Globe Valve 100 Cv

Product Description

The Honeywell V5013C1019 is a robust three-way diverting globe valve designed for efficient control of chilled or hot water within commercial HVAC systems. This model ensures consistent performance with a cast iron body and a bronze seat, equipped for operating pressures up to 150 psi at water temperatures as high as 250 degrees Fahrenheit.

• Flanged connection for secure installation.
• Operates under a wide temperature range from 40 to 250 degrees Fahrenheit.
• Includes a stainless steel stem to prevent corrosion.

Product Highlights

Ideal for HVAC systems requiring precise water flow control, this valve supports up to 50% glycol content in water systems, providing versatility in usage. The Honeywell V5013C1019 comes standard with a three-way body pattern and a Class IV leakage rating, ensuring minimal loss and efficient operation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5013C1019

Technical Specifications

• Connection Type: Flanged
• Valve Size: 3 inches
• Max Pressure: 150 psi
• Body Material: Cast Iron
• Valve Application: Steam, Water
• Piping Configuration: 3-Way
