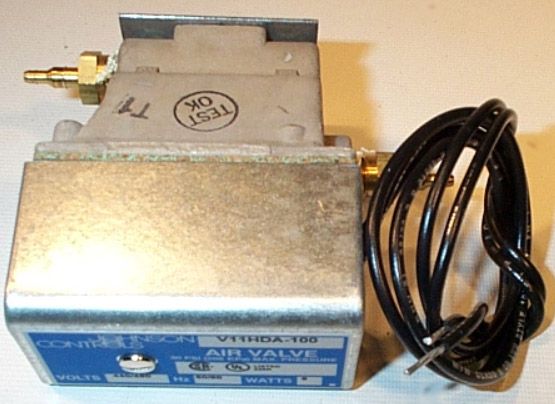

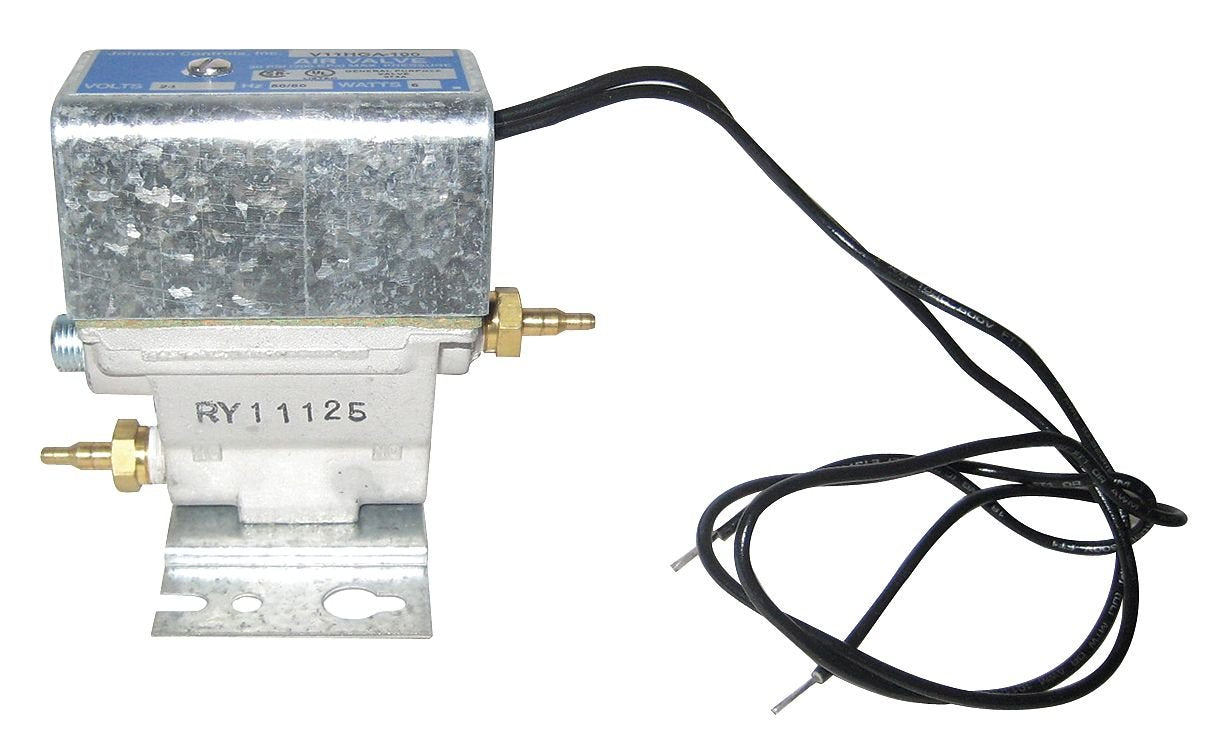

Johnson Controls V11HDA-100 Series V11 Three-Way Solenoid Air Valve 50/60 Hz 440/480 V

Product Description

The Johnson Controls V11HDA-100 Series V11 Three-Way Solenoid Air Valve, 50/60 Hz, 440/480 V, is designed for applications where an electrical circuit operates a pneumatic control device.

• Two-position action
• Three piping connections: N.O. (normally open), N.C. (normally closed), COM (common)
• Manual operation possible by removing the plug and inserting a key

Product Highlights

This valve operates in any position, is furnished with an attached bracket, and can be used in various industrial applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: V11HDA-100

Technical Specifications

• Voltage: 440/480 V
• Frequency: 50/60 Hz
• Control Air Pressure: 0-25 psi
• Max. Air Pressure: 30 psi
• Air Connections: 1/4 in Barb
• Air Consumption: 1.5 cfm
• Temp. Control Range: 32 to 104 Degrees F
• Dimensions: 5.4 x 3.9 x 2.1 inches
• Weight: 4 pounds
• Compliance: UL
