Product Description

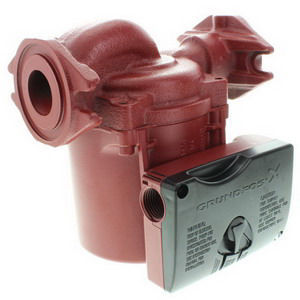

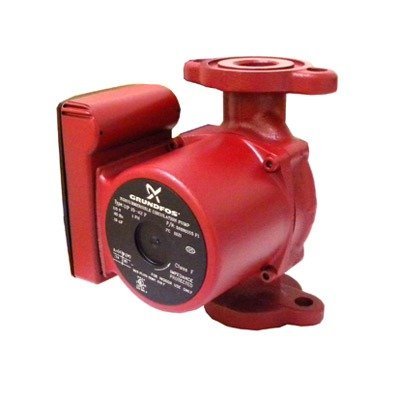

The Grundfos UPS26-99FC is a high-performance circulator pump designed for various heating applications. Featuring a cast iron body and built-in flow check, this pump is ideal for closed loop systems with medium to high flow rates and pressure drops.
- Grundfos Part Number UPS26-99FC
- Three-speed technology for versatile use
- Built-in automatic resetting thermal protection
Product Highlights
This pump operates with low noise and energy consumption, making it suitable for sound-sensitive installations. It is maintenance-free and includes built-in motor protection for longer life and better performance.
Product Information
Standard Information
-
Brand: Grundfos
-
MPN: UPS26-99FC
Technical Specifications
-
Flow Rate: 33 gpm
-
Power Rating: 1/6 hp
-
Voltage Rating: 115 V, 60 Hz, 1 Phase
-
Speed: 3380 Rpm
-
Amperage Rating: 1.8 A
-
Maximum Head: 29 ft
-
Material: Cast Iron
-
Dimensions: 6-1/2 Inch L x 6 Inch W
-
Mounting Type: In-Line
-
Temperature Rating: 35.6 - 230 deg F
-
Connection Type: Flanged
-
Maximum Pressure: 145 psi
