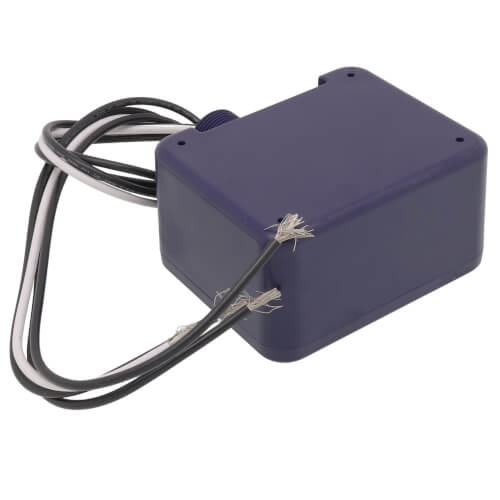

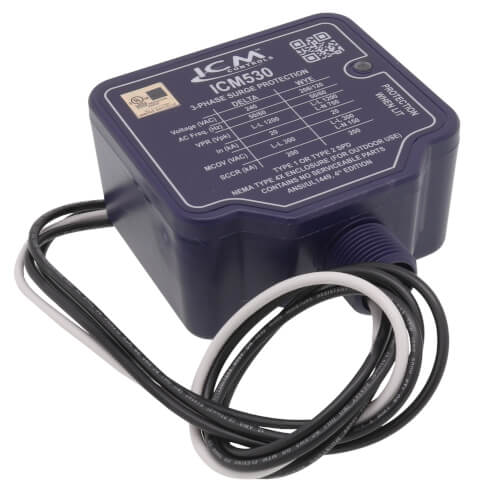

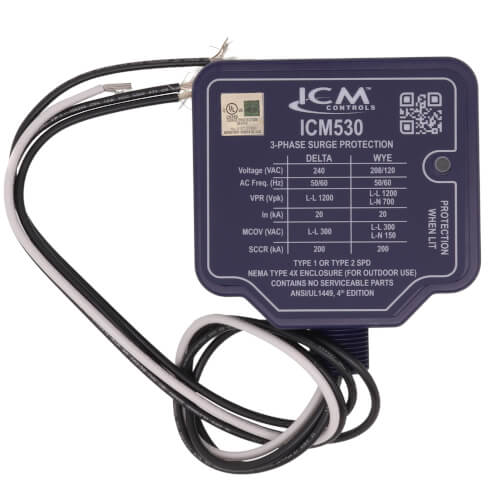

ICM Controls ICM530 3-Phase Surge Protective Device 240VAC/120/208VAC

Product Description

The ICM Controls ICM530 is a 3-phase surge protective device suitable for both 240VAC (Delta) and 120/208VAC (Wye) configurations. Designed for reliability and durability, this device is housed in a NEMA Type 4X watertight plastic enclosure, ensuring robust protection against environmental conditions.

• Supports both Delta and Wye configurations.
• Green LED indicator for surge protection status.
• UL Listed, suitable for Type 1 or Type 2 SPD applications.

Product Highlights

ICM Controls' ICM530 model offers easy installation, either connected directly to an electrical panel or used as a standalone unit in indoor or outdoor settings. Its compact size and versatile design make it an essential component in safeguarding electrical systems from surge impacts.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM530

Technical Specifications

• Configuration: Delta or Wye
• Enclosure: NEMA Type 4X
• Surge Protection Indicator: Green LED
• Installation: Easily connects to electrical panel or disconnect
• Dimensions: Weight: 0.99 lbs, Width: 4.1 inches, Height: 2.3 inches, Depth: 4.3 inches
