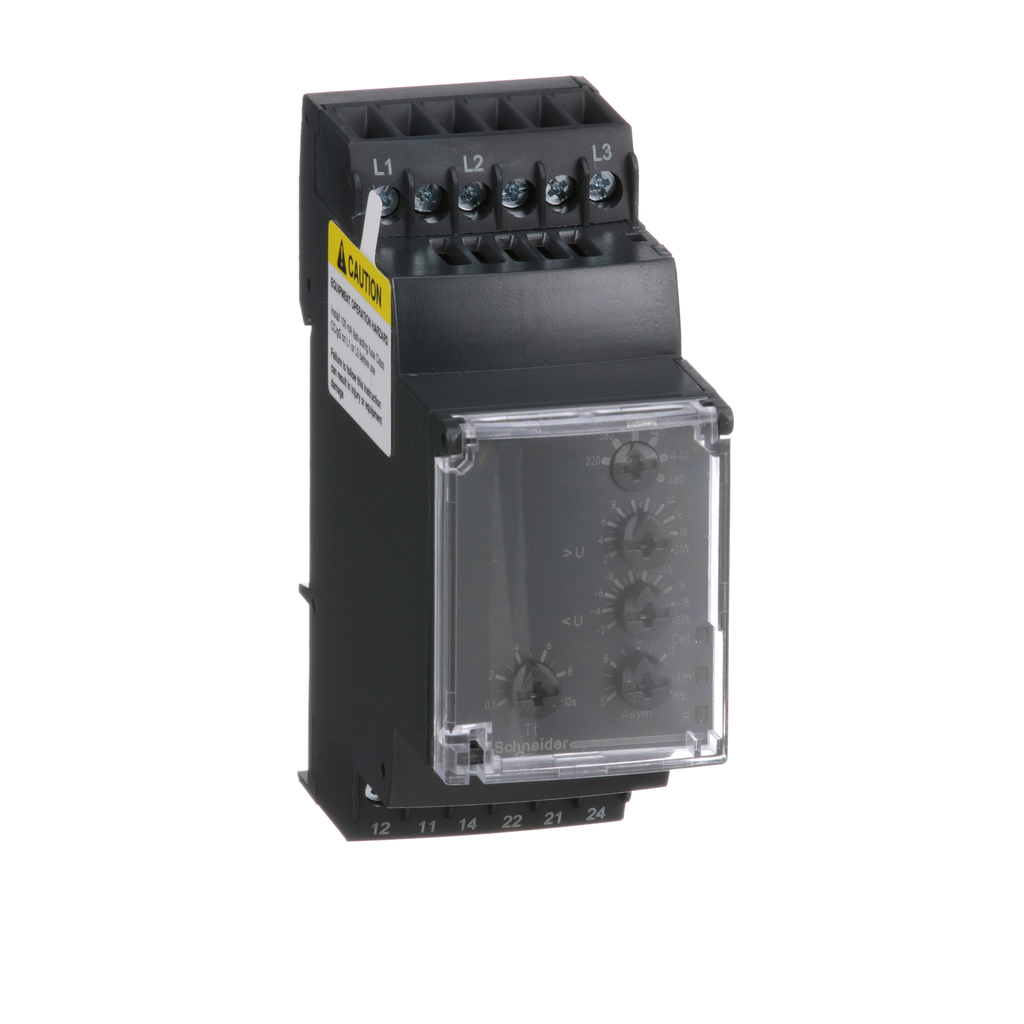

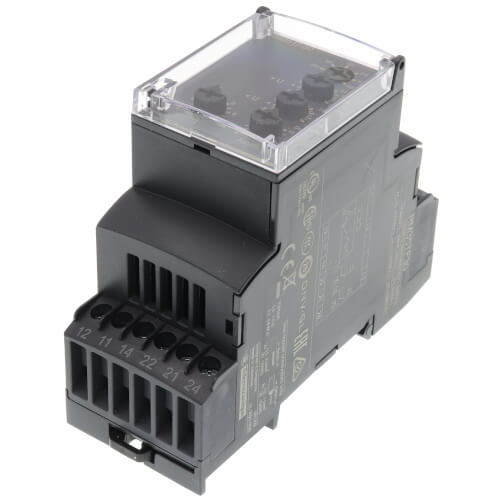

Schneider Electric RM35TF30 3-Phase Relay 250V 5 Amp RM35

Product Description

The Schneider Electric RM35TF30 3-Phase Relay offers reliable monitoring and control in industrial settings. This device ensures proper phase sequencing, undervoltage, and overvoltage detection to protect your equipment.

• Monitors and detects phase faults
• Supports a voltage range of 220-480 VAC
• 5 Amp current rating

Product Highlights

Designed to maintain optimal function in 3-phase systems, the RM35TF30 relays inform users of abnormal conditions to prompt timely corrective actions, preventing costly breakdowns. It guarantees efficient power distribution with its wide voltage handling capability and robust construction, making it essential for heavy-duty applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: RM35TF30
• Range: 220-480 VAC

Technical Specifications

• Current Rating: 5 Amp
• Monitored Parameters: Asymmetry, Overvoltage, Phase Failure, Phase Sequence, Undervoltage
• Installation Type: DIN Rail
• Body Dimensions: Depth 2.84 in, Height 3.54 in, Width 1.38 in
• Weight: 4.64 oz
• Contact Form: DPDT
• IP Rating: IP30
• Standards: C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed
