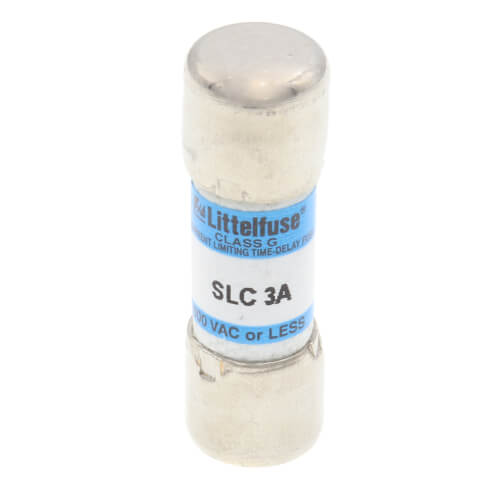

Littelfuse SLC003 Fuse 600V 3A Time-Delay Class G Cartridge Design

Product Description

The Littelfuse SLC003 is a Class G time-delay fuse designed to provide reliable protection in electrical circuits. This compact cylindrical fuse operates at a voltage of 600VAC and can handle a 3A current, ensuring safety and efficiency in power distribution.

• Advanced time-delay feature to handle temporary overloads without tripping.
• Robust cylindrical design prevents incorrect fuse placement.
• High interrupting rating of 100kA at 600VAC provides exceptional protection.

Product Highlights

This fuse is specifically engineered to protect branch circuits while accommodating modern electrical demands with its medium time-delay functionality and current-limiting design. Its compact size and specific dimensions make it suitable for precise applications, ensuring compliance with NEC requirements.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: SLC003
• Category: Class G Fuses

Technical Specifications

• Rated Voltage: 600VAC
• Rated Current: 3A
• Interrupting Rating: 100kA at 600VAC, 10kA at 170VDC
• Fuse Size: 1-5/16 in L x 13/32 in dia
• Compliance Standards: UL Listed, CSA Certified
