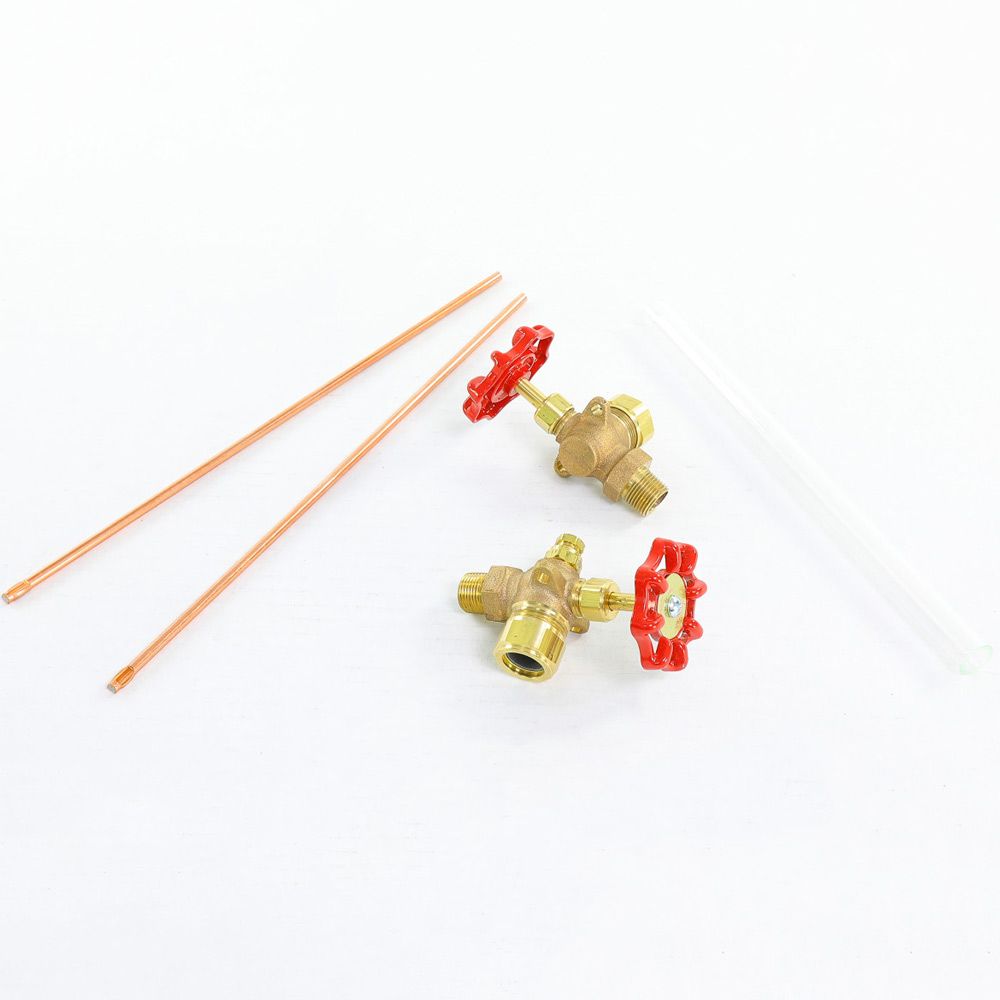

Conbraco 20-101-00 Standard Pattern Water Gauge 3/8 MNPT 300 psi at 100 deg F, 125 psi at 350 deg F

Product Description

The Conbraco Industries 20-101-00 is a standard pattern water gauge designed for accurate measurement of water pressure. This gauge features a three-eighths inch MNPT connection and operates at a maximum pressure of 300 psi at one hundred degrees Fahrenheit and 125 psi at three hundred fifty degrees Fahrenheit.

• Gauge is rated for high pressure use
• Includes essential components for installation
• Built with durable materials for reliability

Product Highlights

The 20-101-00 water gauge provides precise readings for a variety of applications, making it suitable for both residential and commercial settings.

Product Information

Standard Information

• Brand Name: Conbraco
• MPN: 20-101-00

Technical Specifications

• Connection Size: 3/8 MNPT
• Measuring Range: 300 psi at 100 deg F, 125 psi at 350 deg F
• Glass Size: 5/8 inch diameter x 10 inches length
• Weight: 2.85 lbs
• Height: 9.7 inches
• Width: 10.4 inches
• Length: 13.9 inches
• Material: Bronze
