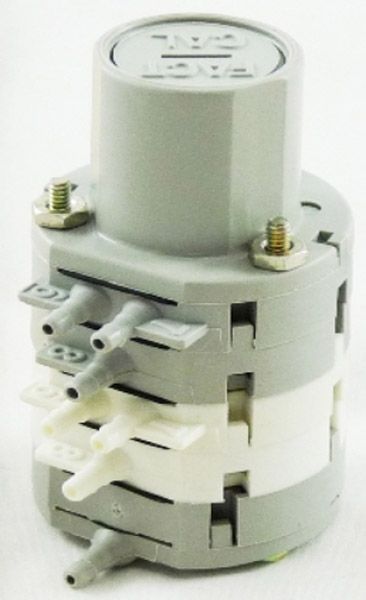

Honeywell RP670B1009 Pneumatic Switching Relay

Product Description

The Honeywell RP670B1009 is a robust pneumatic switching relay designed to enhance the functionality of pneumatic heating and cooling control systems. Featuring a double-pole, double-throw (DPDT) configuration, this relay facilitates precise control by blocking, bleeding, or diverting air lines based on pilot pressure changes.

• DPDT switching pressure of 3 and 7 psi.
• Compatible with 5/32 inch barbed pneumatic connections for reliable linkage.
• Mounted easily with included mounting clip.

Product Highlights

The relay offers two-position switching capabilities, allowing for versatile application across various industrial settings. Ideal for motor control, power distribution, and automation systems

Product Information

Standard Information

• Model: RP670B
• Weight: 0.1 lbs

Technical Specifications

• Type: Pneumatic Switching Relay
• Operation: DPDT relay
• Capacity: 0.039 scfm at 1 psi differential
• Maximum Safe Operating Pressure: 30 psi
• Switching Occurs Between: 3 and 7 psi
• Mounting: Wall or Panel mount
• Switch Difference: 0.5 psi
• Setpoint Range: 3 to 15 psi
