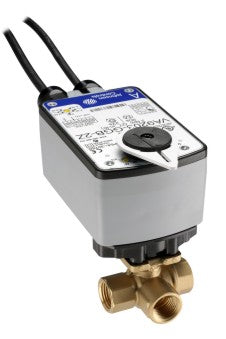

Johnson Controls VG1841BN+923BGB Three-Way Plated Brass Trim NPT End Connections Ball Valve with Spring-Return Port A Open

Product Description

The Johnson Controls VG1841BN+923BGB is a three-way ball valve designed to regulate the flow of hot or chilled water and low-pressure steam in HVAC systems. This ball valve is part of the VG1000 Series and is compatible with Johnson Controls VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.

• Forged brass body provides 580 psig static pressure rating
• Compatible with multiple series of electric actuators for versatile control options
• Available in sizes 1/2 through 2 inches

Product Highlights

This three-way valve helps control water and steam flow in HVAC systems using Johnson Controls electric actuators. Suitable for both residential and commercial HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1841BN+923BGB
• Category: HVAC Controls
• Manufacturer: Johnson Controls, Inc

Technical Specifications

• Type: Three-Way Ball Valve
• Material: Forged Brass
• Static Pressure Rating: 580 psig
• Compatible Actuators: VA9104, M9106, M9109, M9100, VA9203, VA9208
• Sizes: 1/2 to 2 inches
• Connections: NPT End Connections
• Weight: 0.6 lbs
• Power: 24V SR 2PosAux
