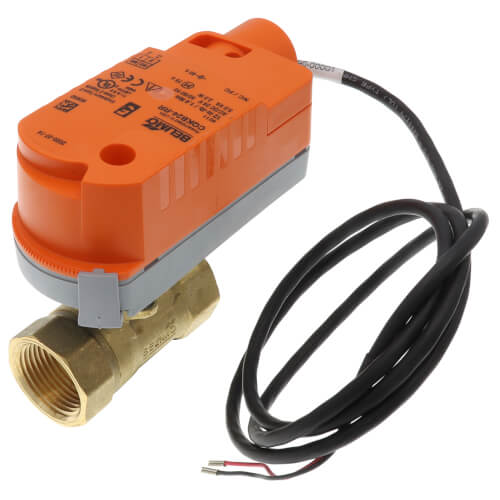

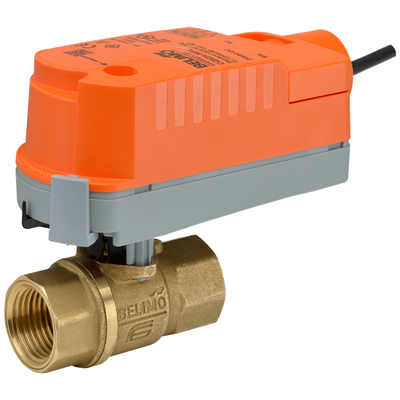

Belimo Z2075Q-K+CQKB24-RR ZoneTight 0.75 2 Way 9.8 Cv w/ Electronic FS 24V On/Off

Product Description

The Belimo Z2075Q-K+CQKB24-RR ZoneTight valve is engineered for large commercial buildings. It features a rotary actuator with on/off control and a 9.8 Cv flow capacity. This two-way valve is ideal for applications such as unit ventilators, fan coil units, VAV reheat coils, fin tube casing, radiant panels, and duct coils. It is compact and can be installed in tight spaces without tools.

• Operated by a rotary actuator
• Space-saving design
• Zero leakage

Product Highlights

Belimo's ZoneTight valve offers energy-efficient and easily controllable water flow for HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2075Q-K+CQKB24-RR

Technical Specifications

• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Valve Size: 0.75 inches
• Trim: Chrome plated brass
• Cv: 9.8
• Angle of Rotation: 90 degrees
• Control Type: On/Off
• Actuator Type: Electrical fail-safe
• Voltage AC/DC: AC/DC 24V
• Power Consumption (Running): 2.5 W
• Power Consumption (Holding): 0.5 W
• Running Time (Motor): 75 seconds / 90 degrees
• Running Time (Fail-safe): less than 60 seconds
• Degree of Protection: IP40 NEMA 2
• End Fitting: Internal thread
• Pressure Independent: No
• Electrical Connection: Cable
