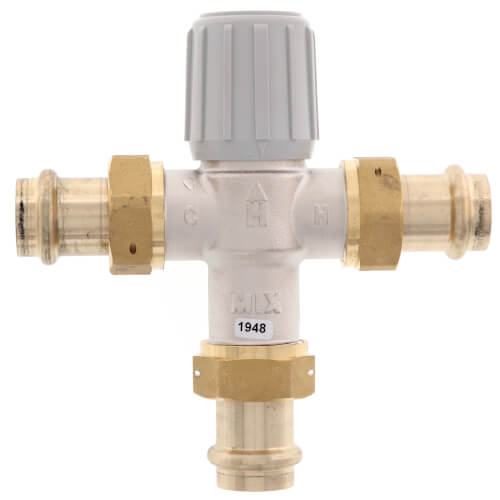

Resideo AM101-UP-1LF Thermostat Mixing Valve 3/4 Inch Union Press Lead Free

Product Description

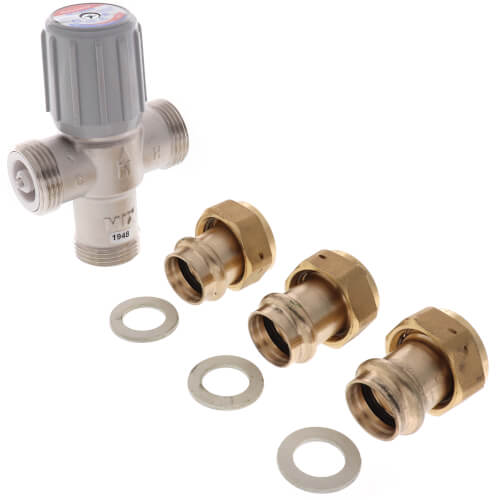

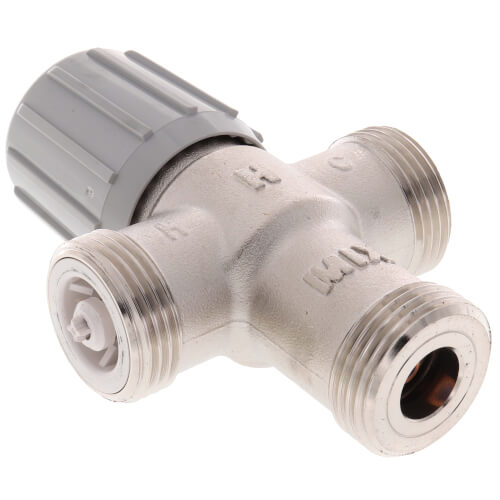

The Resideo AM101-UP-1LF Thermostat Mixing Valve, featuring a 3/4 inch union press connection, is designed to adjust, maintain, and limit hot water temperature. This valve ensures safety and efficiency in residential heating systems.

• Lead-free, nickel-plated brass construction with a Teflon coating for durability and reduced mineral build-up.
• Equipped with dual-purpose mixing or diverting valves to manage water temperature under varying conditions.
• Integrates an EPDM O-ring and a tamper-resistant design, offering reliable performance even with a minimum flow of 0.5 gpm.

Product Highlights

This valve functions optimally between 70°F and 145°F, handling up to 150 psi and ensuring a consistent water temperature. Its proportional valve design enables simultaneous control over hot and cold water.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: AM101-UP-1LF

Technical Specifications

• Type: Mixing Valve Lead Free
• Inlet Size: 3/4 inch Press
• Outlet Size: 3/4 inch Press
• Max Pressure: 150 psi
• Max Temperature: 212 degrees Fahrenheit
• Connection Type: Press x Press
• Flow Capacity (Cv): 3.2
• Temperature Range: 70°F - 145°F
