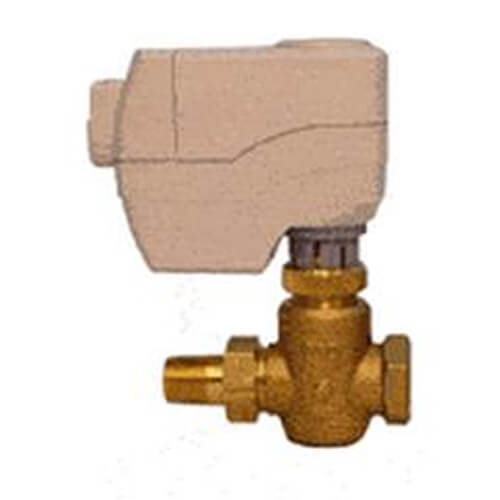

Siemens 262-02062 3/4 NPT x Union Male Powermite MT Series 2-Way Mixing N.O. SS Valve Actuator Assembly, 24Vac, 6.3 Cv

Product Description

The Siemens 262-02062 valve actuator assembly is designed for efficient control of HVAC systems. This 3/4-inch NPT x Union Male Powermite MT Series 2-Way Mixing Valve Actuator operates on 24Vac power and offers a flow capacity of 6.3 Cv. It features a normally open position with stainless steel trim.

• Compatible with pneumatic and electronic actuators.
• Suitable for hot or chilled water and water-glycol solutions up to 50 percent.
• Can handle steam up to 15 psi with stainless steel trim.

Product Highlights

This valve actuator assembly is ideal for controlling hot or chilled water in HVAC systems. It supports water-glycol solutions and is effective with steam when using stainless steel trim. Compatible with both pneumatic and electronic actuators, it provides a minimum force of 67 lbs.

Product Information

Standard Information

• Brand: Siemens
• MPN: 262-02062
• Product Type: Valve Actuator Assembly

Technical Specifications

• Voltage: 24Vac
• Valve Type: 2-Way
• Trim: Stainless Steel
• Position: Normally Open
• Cv: 6.3
• Control Signal: 0-10V
• Connection: NPT x Union Male
• Actuator: SSC61.5U
• Mounting: NEMA 1
• Spring Return
• Valve Size: 3/4 inch
