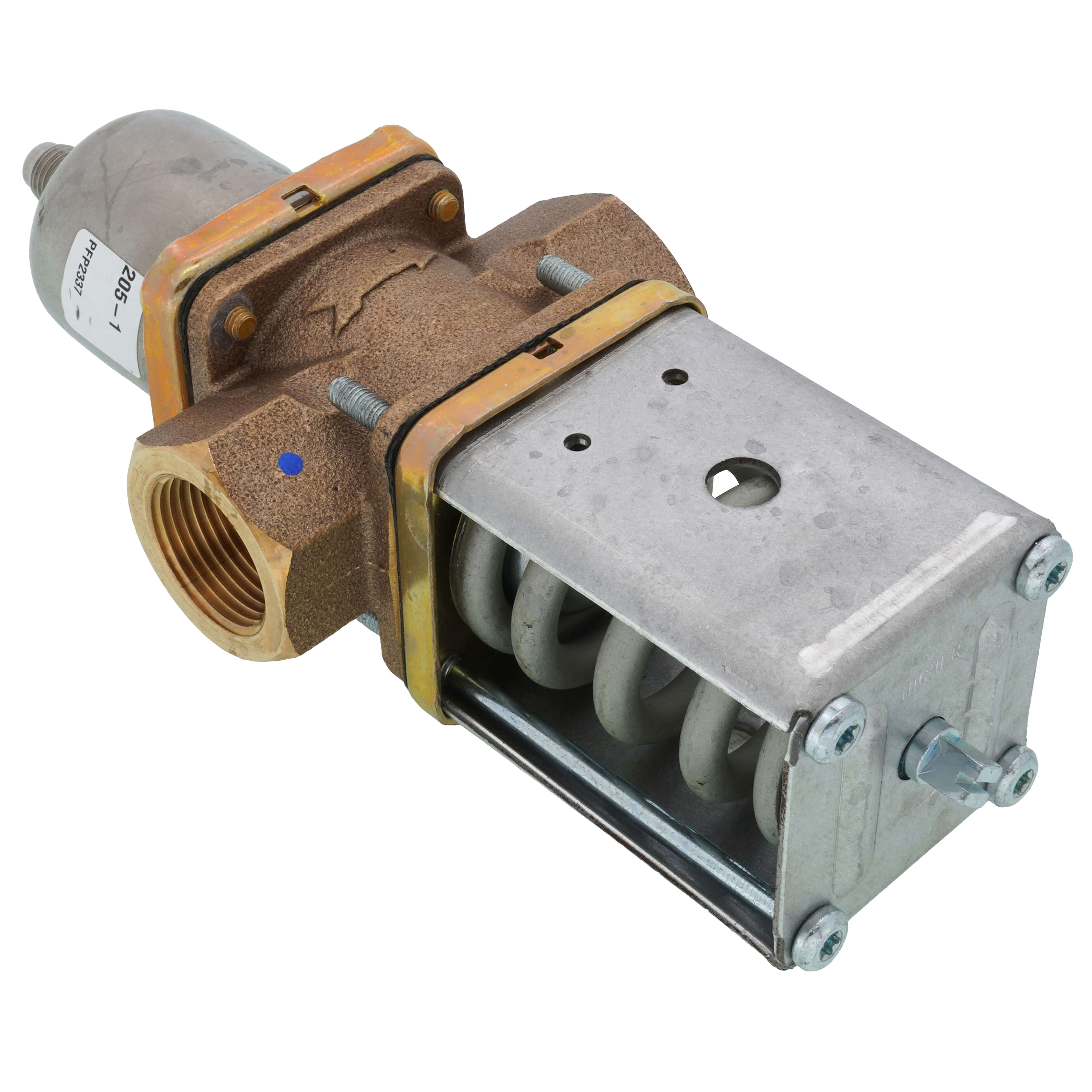

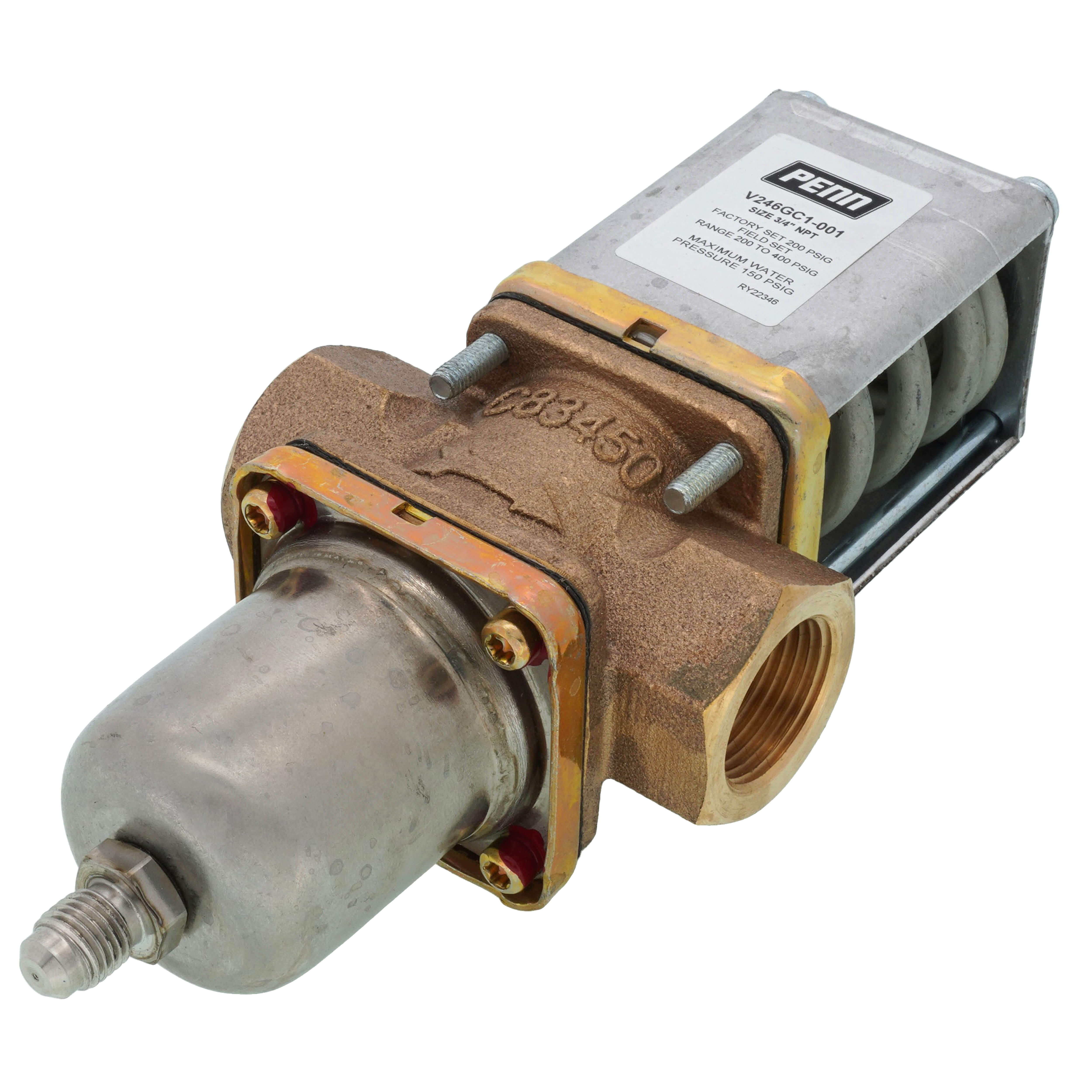

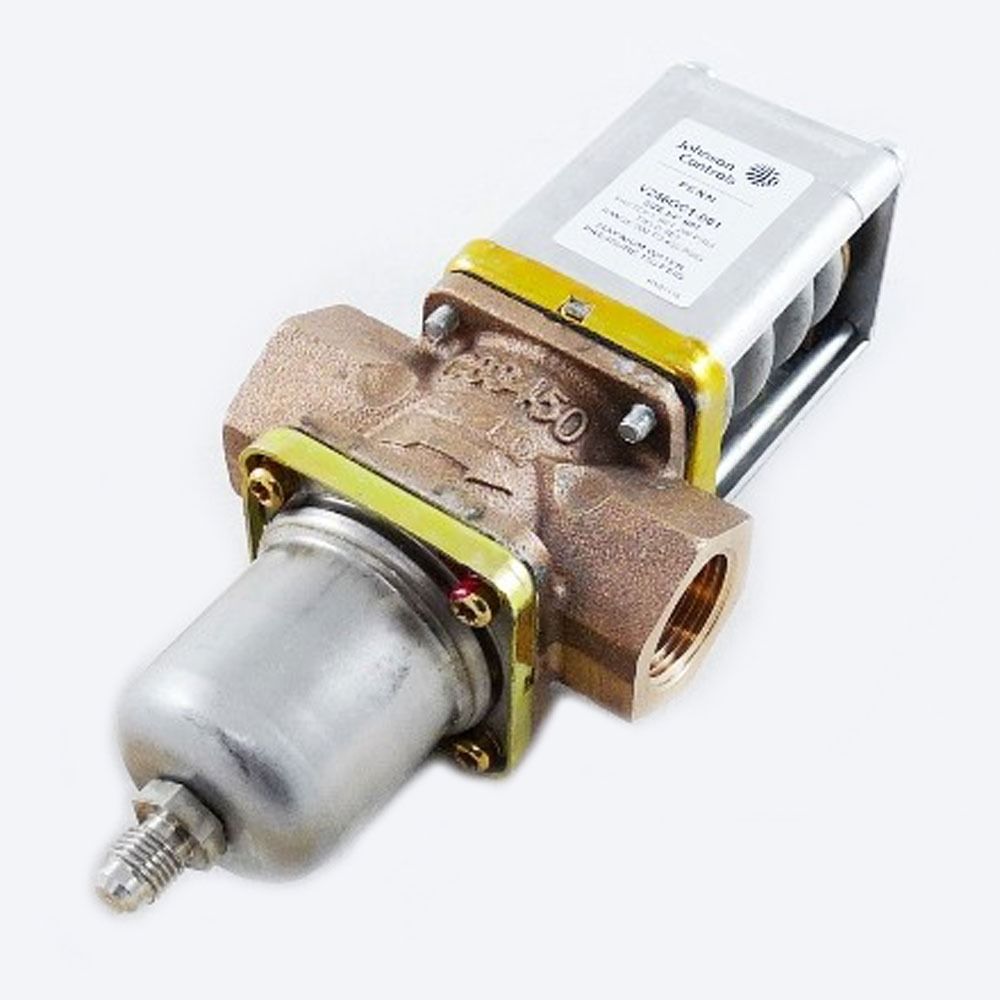

Johnson Controls V246GC1-001C Water Regulating Valve 3/4 NPT

Product Description

The Johnson Controls V246GC1-001C is a water regulating valve designed for high-pressure applications. This valve is a two-way type with a connection size of three-fourths inch NPT. It operates effectively in a refrigerant pressure range of two hundred to four hundred psi. This makes it suitable for managing refrigerant head pressure in systems with water-cooled condensers.

• Direct acting for precise flow control
• Corrosion-resistant materials enhance durability
• Suitable for use with R-410A refrigerant

Product Highlights

This valve features an adjustable opening point and has no close fitting or sliding parts in the water passages, enabling reliable operation.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V246GC1-001C

Technical Specifications

• Connection Size: 3/4 inch
• Fluid Temperature Range: -4 degrees F minimum
• Design Pressure: 630 psig
• Set Points: 200 to 400 psi
• Weight: 3.7 lbs
• Type: 2 Way
• Application: Water Cooled Head Pressure Control
