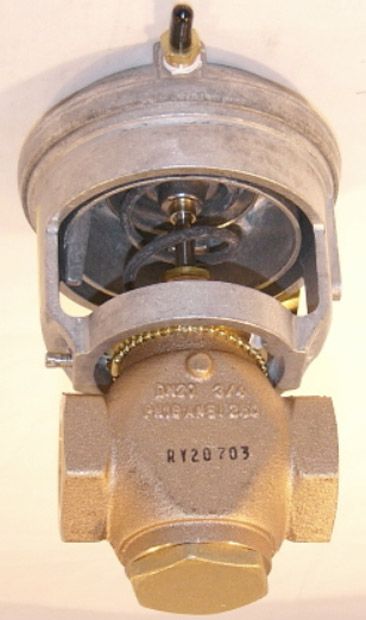

Johnson Controls VG7441LT+3008E Globe Valve Assembly 2 Way 3/4 in.

Product Description

The Johnson Controls VG7441LT+3008E is a globe valve assembly designed for HVAC applications. This valve incorporates a two-way configuration with a three-quarter inch NPT connection, suitable for both steam and water flow control.

• Body Material: Bronze
• Flow Capacity: 7.3 Cv
• Pressure Range: 9 to 13 psi

Product Highlights

This valve provides effective regulation of water and steam flows, made for reliable performance in various settings. The integrated pneumatic actuator works efficiently in controlling fluid flow.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7441LT+3008E

Technical Specifications

• Valve Type: Normally Closed
• Operating Pressure: 100 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Service Applications: Hot water, chilled water, 50/50 glycol solutions, steam
• Closeoff Pressure: 100 psig
• Housing Material: Die-Cast Aluminum
