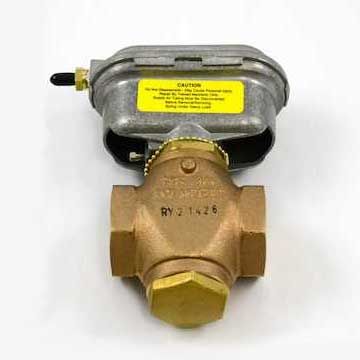

Johnson Controls VG7441LS+3801D Brass Trim Globe Valve with Compact Pneumatic Actuator

Product Description

The Johnson Controls VG7441LS+3801D is a 3/4 inch NPT brass trim globe valve equipped with a compact pneumatic actuator, designed for regulating hot or chilled water and up to 15 psig of saturated steam. This valve's robust construction ensures reliable operation within a fluid temperature range of 35 to 248 degrees Fahrenheit with a flow coefficient (Cv) of 7.3. The associated actuator operates effectively within a spring range of 4 to 8 psig.

• Effective for both hot and chilled water applications
• Supports up to 15 psig saturated steam
• Suitable for environments requiring precise flow control

Product Highlights

This valve assembly is optimized for durability with its brass body and stainless steel valve stem ensuring long service life under varying conditions. The compact design allows for installation in limited space scenarios such as baseboard radiators and convectors.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7441LS+3801D

Technical Specifications

• Valve Size: 3/4 inch NPT
• Body Material: Brass
• Max Pressure: 15 psi WSP
• Fluid Temperature Range: 35 to 248 degrees Fahrenheit
• Spring Range: 4-8 psig
