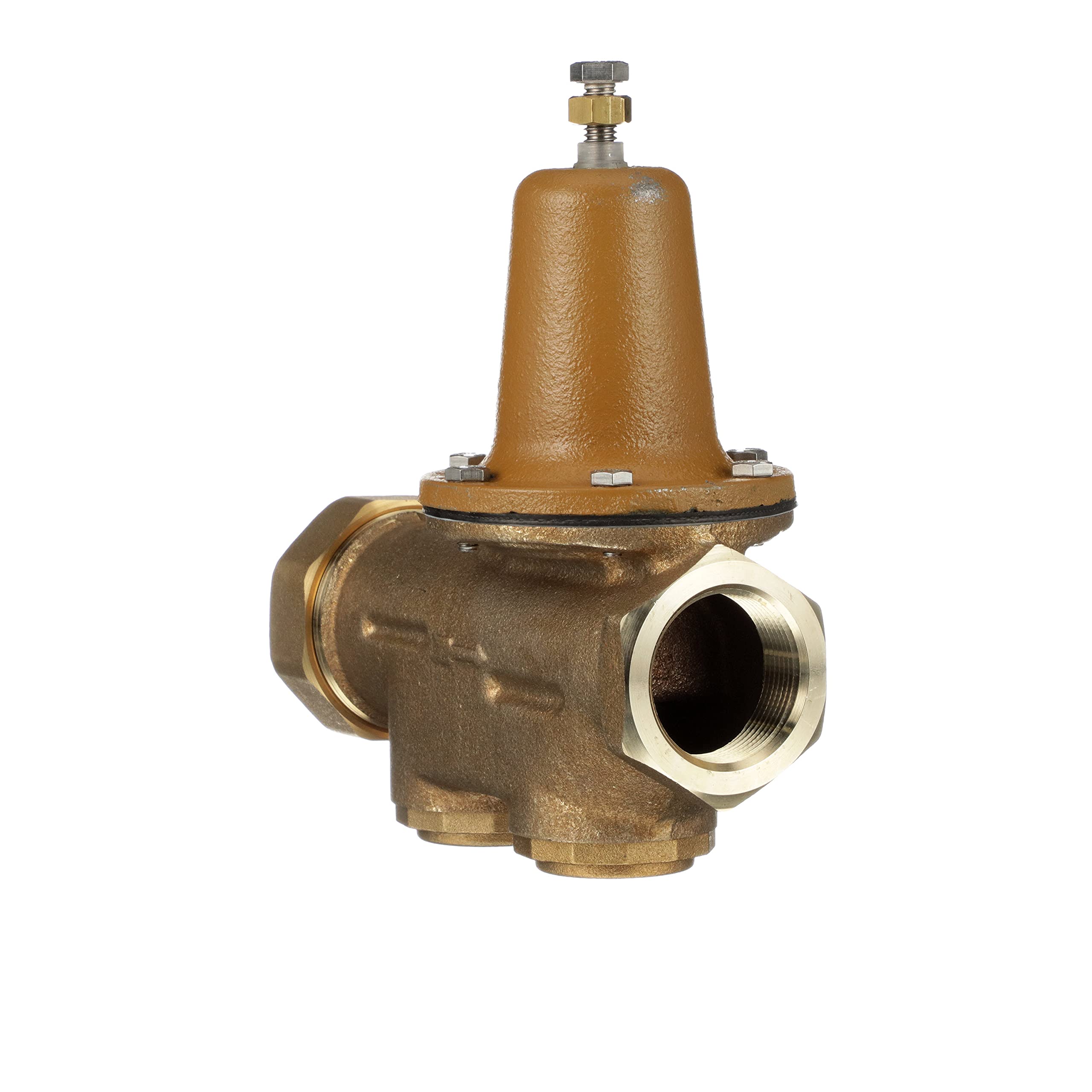

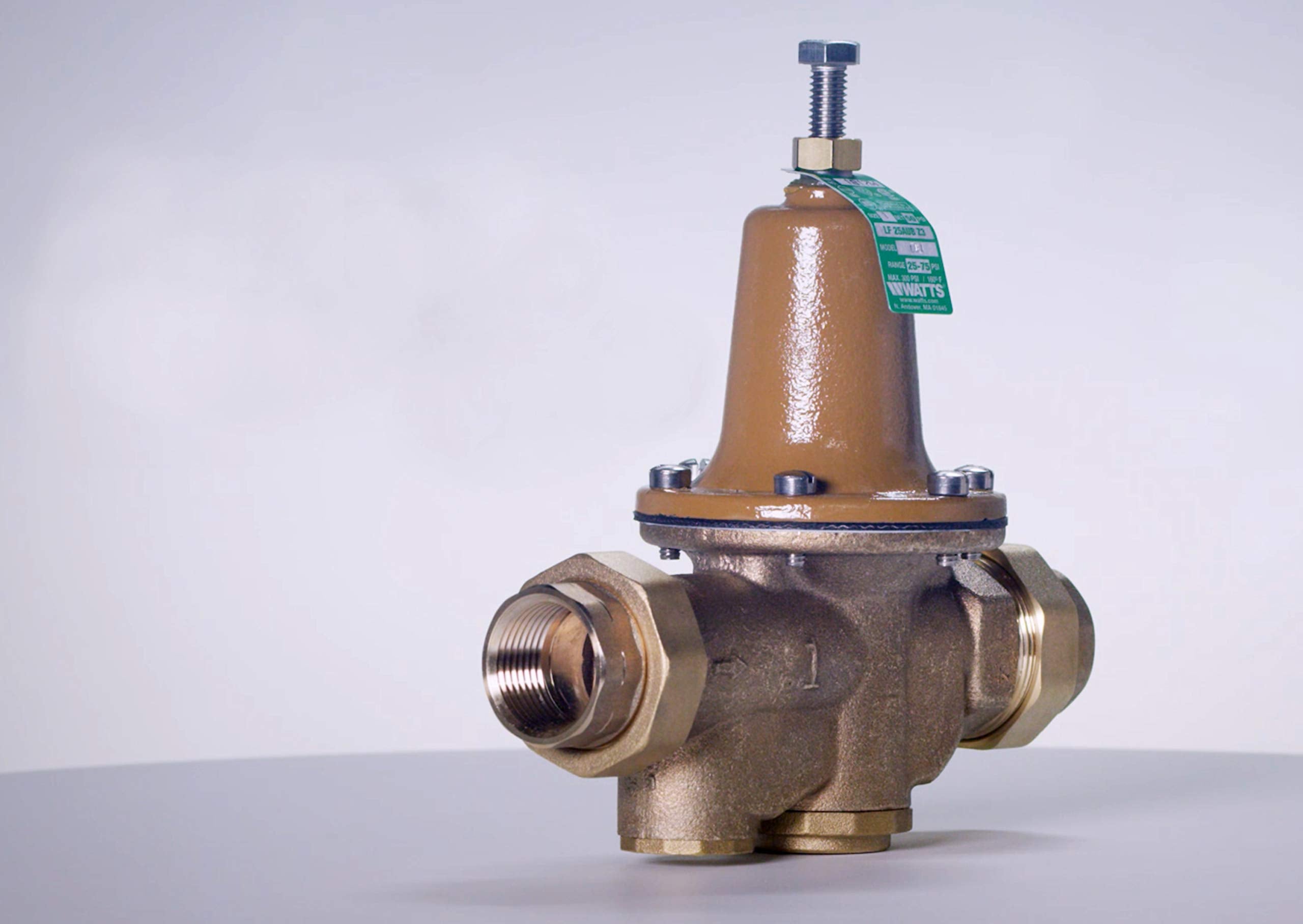

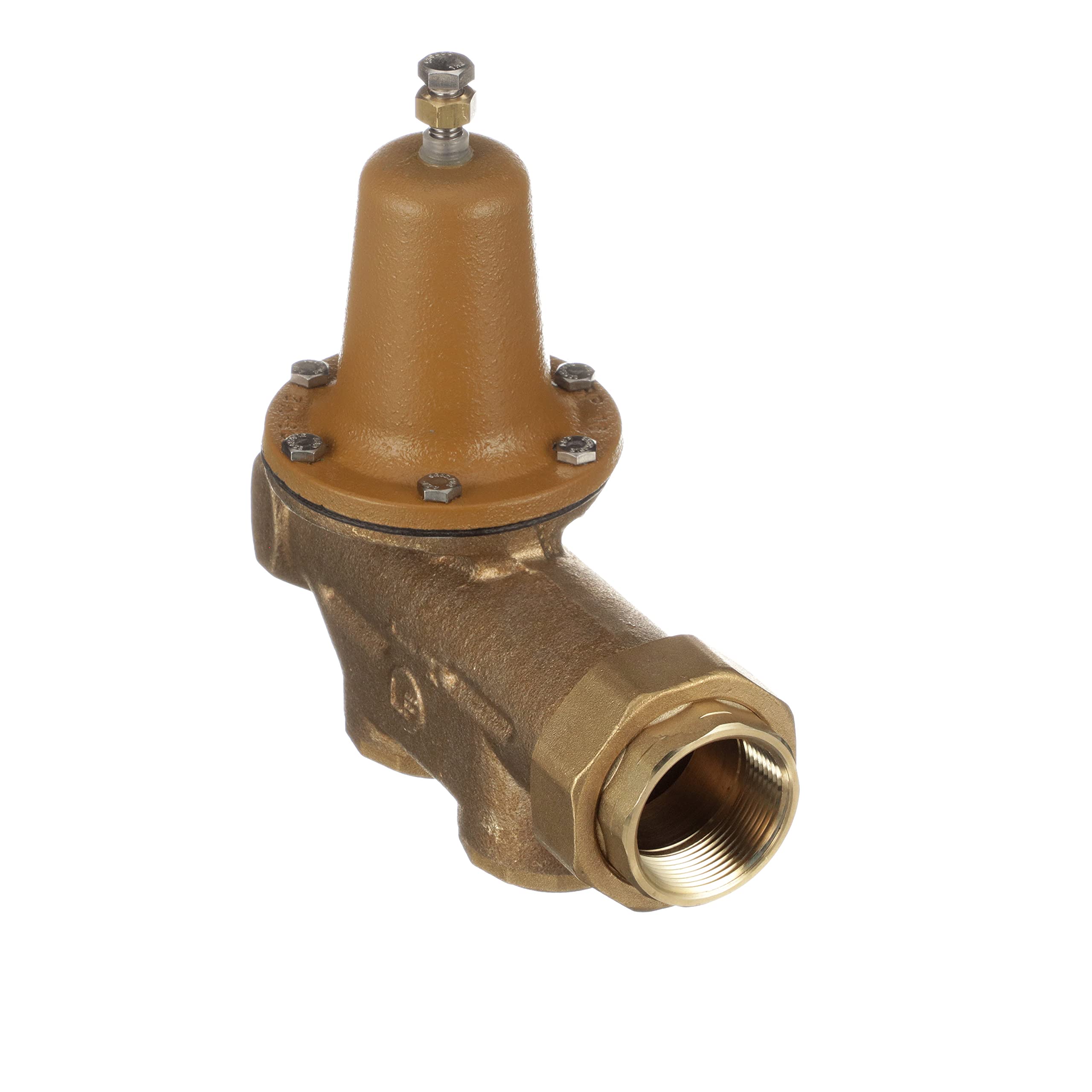

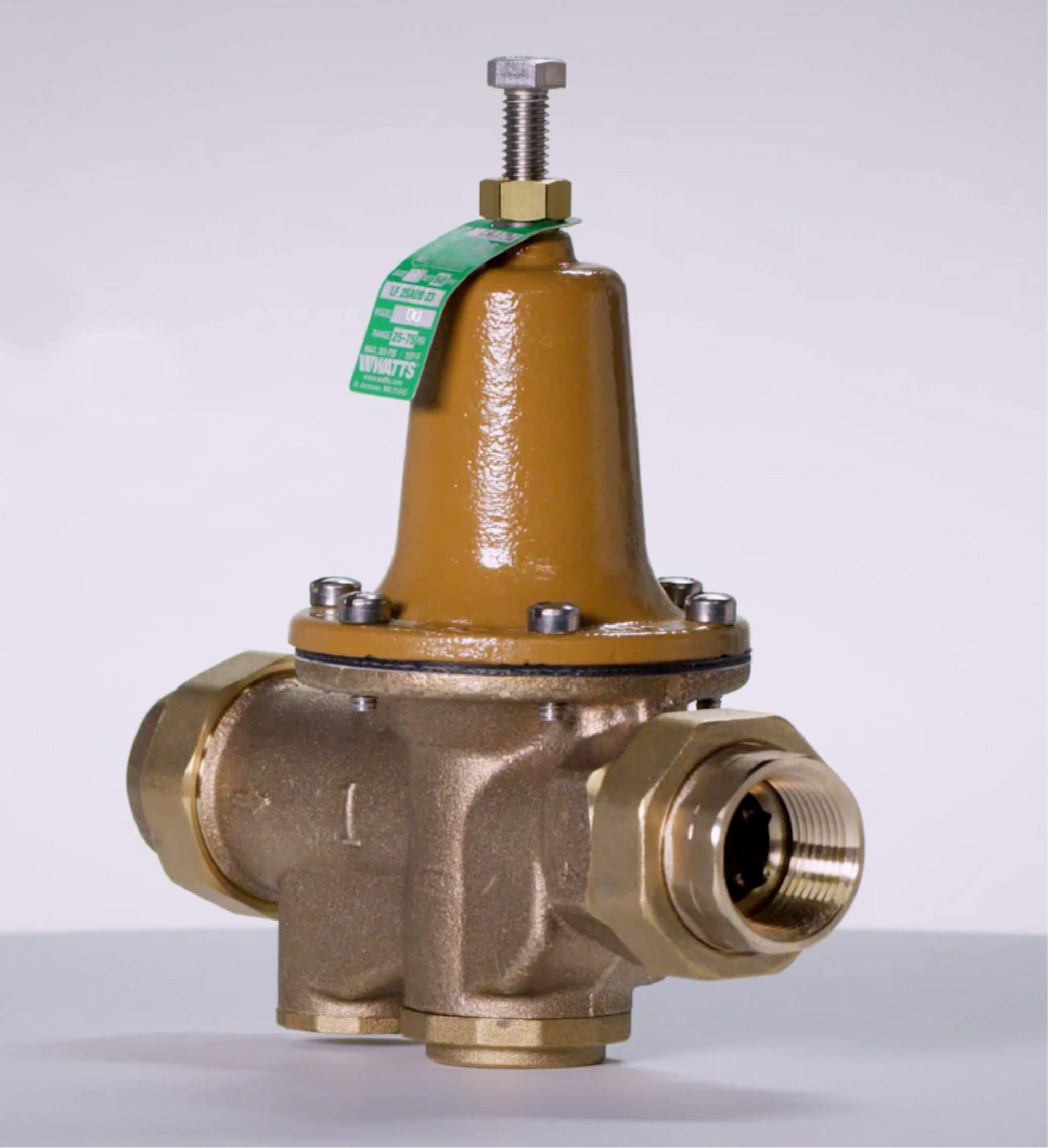

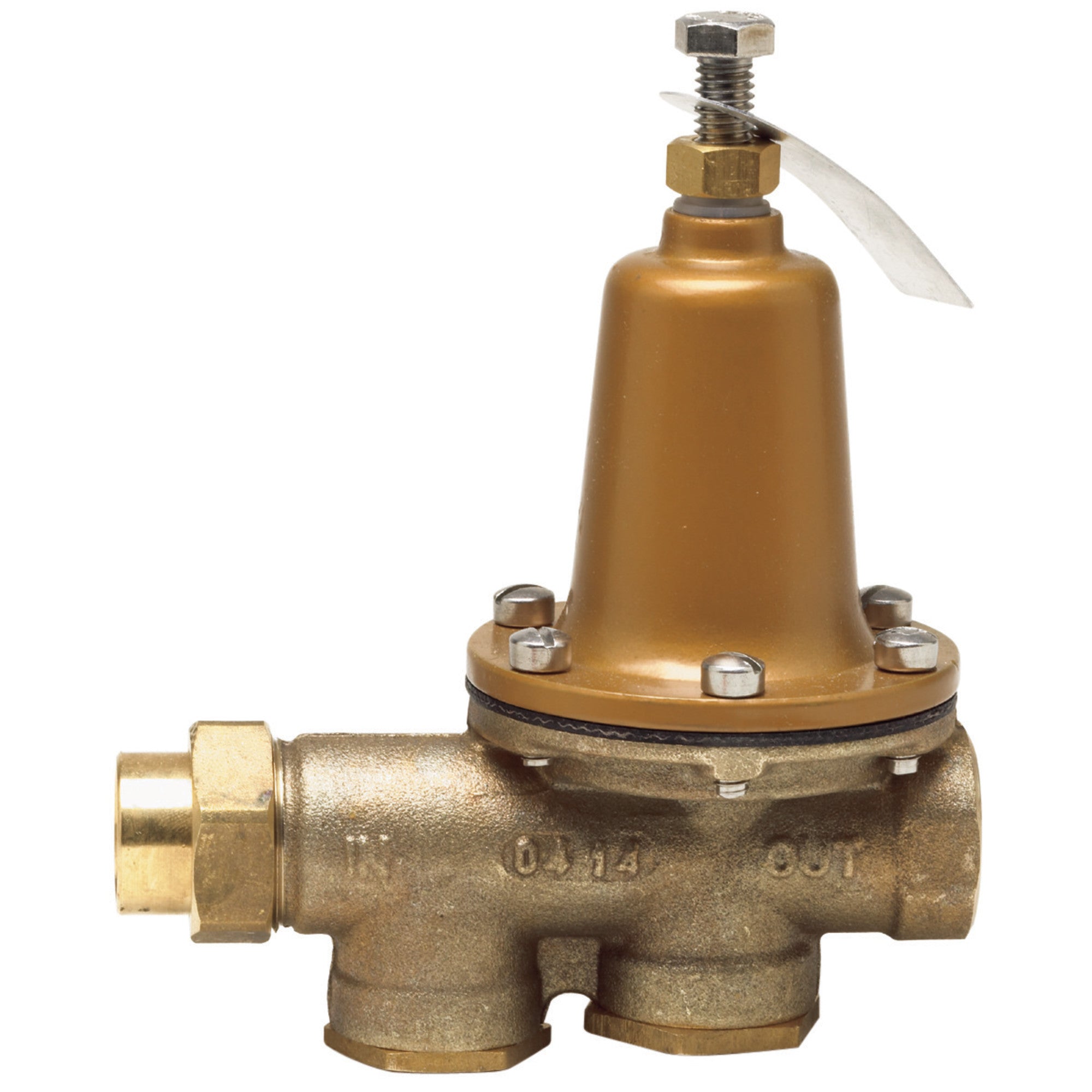

Watts LF25AUB-Z3 Water Pressure Reducing Valve NPT Female Union x NPT Female, Polymer Seat, 3/4 Inch

Product Description

The Watts LF25AUB-Z3 water pressure reducing valve with NPT female union x NPT female connection and polymer seat is designed to reduce incoming water pressure. It protects plumbing systems and reduces water consumption in commercial, industrial, and residential applications. The valve features a replaceable seat module and a bypass to control thermal expansion pressure.

• Reduces incoming water pressure to protect plumbing systems.
• Water supply pressures range is 25 to 75 psi with the standard setting at 50 psi.
• Features a lead free copper silicon alloy with stainless steel strainer.

Product Highlights

This lead-free valve is ideal for reducing water pressure, protecting plumbing, and conserving water in various applications.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: LF25AUB-Z3
• Country of Origin: United States

Technical Specifications

• Valve Type: Reducing Valve
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: FNPT
• Model Number: LF25AUB-Z3
• Product Type: Pressure Reducing Valve
• Brand: Watts
• Size: 3/4 Inch
• Temperature Range: 33 to 180 degrees F (0.5 to 82 degrees C)
• Suitable Pressure: Up to 300 psi (20.7 bar)
• Pressure Range: 25 to 75 psi (172 to 517 kPa)
• Standard Setting: 50 psi (345 kPa)
• Adjustable Pressure Range: 25 – 75psi (172 – 517 kPa)
• Inlet Diameter (In.): 3/4
• BodyMaterial: Lead Free Cast Copper Silicon Alloy
• MaximumOperatingTemperature-Fahrenheit: 180
• MaximumWorkingPressure-PSI: 300
• MinimumTemperature-Celsius: 0.50
• MinimumTemperature-Fahrenheit: 33
• StandardReducedPressureSetting-PSI: 50
• Pipe Size [Specifications]: 3/4"
• Country of Origin (subject to change) [Specifications]: United States
