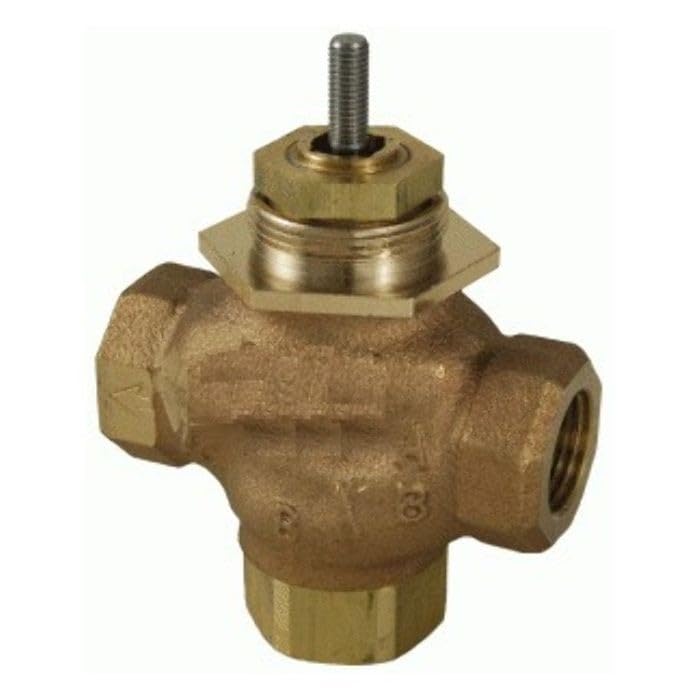

Schneider Electric VB-7313-0-4-06 Series Vb-7000 Three-Way Globe Valve Body, Npt Threaded Straight Pipe End Connection, Mixing, Brass Plug, 3/4 Port Size

Product Description

The Schneider Electric VB-7313-0-4-06 Series Vb-7000 Three-Way Globe Valve Body is designed for efficient control in HVAC applications like chilled and hot water systems. This valve body features an NPT threaded straight pipe end connection and a brass plug with a 3/4 inch port size.

• High range ability with precise control
• Ultra-low energy leakage for conservation
• High differential-pressure rating

Product Highlights

This valve body ensures energy efficiency with a tight close-off and high tolerance to differential pressures, making it suitable for demanding applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric
• MPN: VB-7313-0-4-06

Technical Specifications

• Product Type: Pneumatic Globe Valve
• Connection Type: NPT Threaded
• Material: Brass Plug
• Port Size: 3/4 inch
• Control Type: Three-Way
• Product Dimensions: 15.75 x 11.81 x 5.91 inches
• Weight: 14.77 pounds
• Differential Pressure Rating: Up to 87 psi
