Product Description

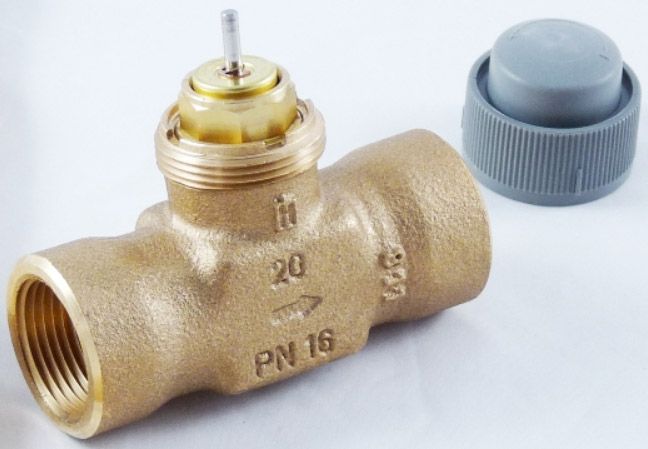

Explore the reliable performance of the Honeywell V5862A2062, a 3/4 inch two-way small linear valve, renowned for its precision in controlling water flow with a capacity of 2.9 Cv. Ideal for applications in HVAC systems including fan coil units and VAV terminal units.
- Robust brass body enhances durability in various industrial settings.
- Designed for efficient water flow management in heating and cooling systems.
- Easy installation and operation, adaptable for multiple HVAC applications.
Product Highlights
This valve is equipped with a stainless steel stem and a manual operation feature making it both durable and easy to use. It provides excellent control with its long stroke and soft valve seat, ensuring minimal leakage.
Technical Specifications
-
Valve Type: Cartridge Globe Valve
-
Body Material: Brass
-
Maximum Pressure: 58 psi
-
Connection Type: NPT (Female)
-
Flow Capacity (Cv): 2.9
-
Suitable Mediums: Chilled or hot water up to 50% glycol
-
Operating Temperature Range: 36 to 230°F
