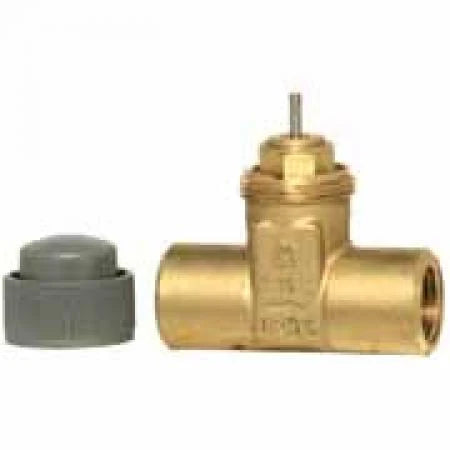

Honeywell V5862A2070 Globe Valve 2 Way 3/4 in 4.9 Cv

Product Description

The Honeywell V5862A2070 is a 2-way cartridge globe valve designed for precise control of hot and chilled water in various HVAC systems. This valve has a three-quarter inch NPT connection and a flow capacity of 4.9 Cv. It is suitable for use in applications such as VAV terminal units and fan coil units.

• Two-way configuration for efficient flow control
• Brass body for durability and resistance to corrosion
• Manual override lever for easy flow adjustment

Product Highlights

Honeywell's V5862A2070 valve allows for smooth and precise operation. Its compact design enables installation in tight spaces, making it ideal for various heating, cooling, and industrial applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5862A2070

Technical Specifications

• Connection Size: 3/4 NPT
• Flow Capacity: 4.9 Cv
• Close Off Pressure: 58 psi
• Operating Temperature: 36 F to 230 F
• Body Material: Brass
• Valve Style: Two-Way
• Leakage Rating: ANSI Class IV
• Service Compatibility: Hot water, chilled water, and glycol solutions up to 50% concentration
