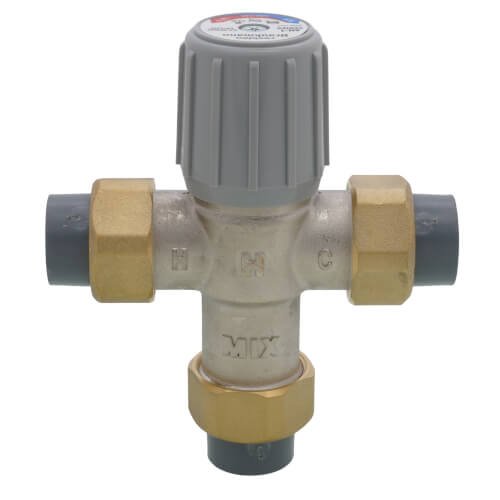

Resideo Braukmann AM101-UCPVC-1LF 3/4 Inch CPVC Union Mixing Valve Lead Free

Product Description

The Resideo Braukmann AM101-UCPVC-1LF is a 3/4 inch CPVC union mixing valve that ensures safe and regulated water temperatures, ideal for both domestic and heating applications. This lead-free valve is designed for effective scald protection and bacteria growth control by enabling a higher water heater storage temperature while maintaining safe outlet temperatures.

• Features dual-purpose capabilities, serving as both mixing and diverting valves.
• Provides consistent water temperature with a minimal flow requirement of 0.5 gallons per minute.
• Constructed from nickel-plated brass and features EPDM O-rings for enhanced durability and performance.

Product Highlights

This valve is equipped with a high-performance thermoplastic proportioning shuttle, and its straight-through design ensures equal hot and cold water levels, supporting a maximum pressure of 150 psi and a temperature up to 212 degrees Fahrenheit. Designed for easy maintenance, the internal valve components are Teflon-coated to prevent mineral build-up and extend service life.

Technical Specifications

• Type: Mixing Valve
• Connection Type: CPVC x CPVC
• Flow Capacity (Cv): 3.9
• Temperature Range: 70 degrees Fahrenheit to 145 degrees Fahrenheit
• Standards Met: ASSE 1017, CSA, IAPMO
