Product Description

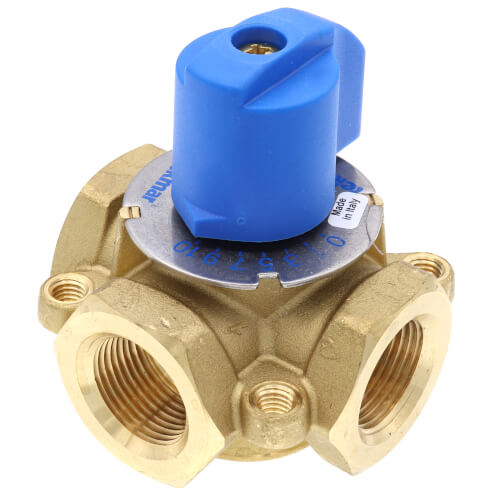

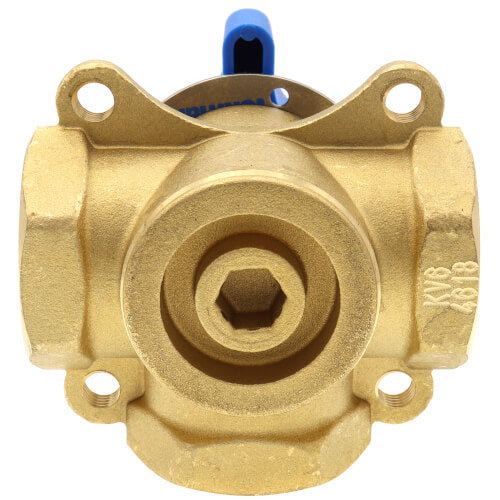

The TEKMAR 710 is a 3/4 inch Brass 3-Way Mixing Valve designed for efficient temperature control in hydronic heating systems. This valve mixes supply water from a heat source with water returning from the system.
- Designed for both closed loop and open loop systems.
- Features female NPT threads for straightforward integration.
- Includes a manual handle with optional automation via an Actuating Motor 741.
Product Highlights
This mixing valve operates with a maximum pressure of 146 psi and a temperature range of 20 to 248 degrees Fahrenheit. Its leak through rate is capped at 1% to accommodate thermal expansion.
Product Information
Standard Information
-
Material: EN 12165 Brass
-
Valve Type: 3-way
Technical Specifications
-
Seal Type: Viton O-rings and EPDM Peroxide O-ring
-
Maximum Pressure: 146 psi
-
Temperature Range: 20 to 248 degrees Fahrenheit
-
Connection Type: Female NPT
-
Acceptable Fluid Media: Chilled and hot water, glycol solutions, and alcohol variants up to 60% concentration
