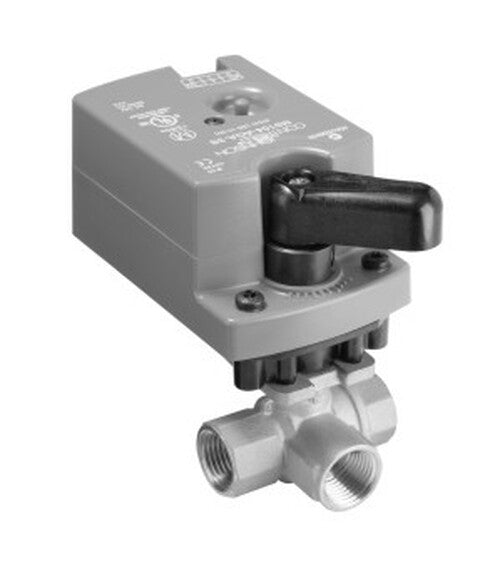

Johnson Controls VG1841BL+9A4GGA Three-Way Plated Brass Trim NPT End Connections Ball Valve

Product Description

The Johnson Controls VG1841BL+9A4GGA is a three-way plated brass ball valve designed for HVAC systems. It regulates the flow of hot or chilled water and low-pressure steam in response to controller demands. The valve features NPT end connections and is paired with a VA9104-GGA-2S non-spring-return electric actuator.

• Forged brass body provides 580 psig static pressure rating
• NPT end connections for easy installation
• Designed for use with Johnson Controls electric actuators

Product Highlights

This ball valve is perfect for HVAC systems requiring reliable flow control of water and steam. It is compatible with on/off, floating, or proportional control systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1841BL+9A4GGA
• Manufacturer: Johnson Controls, Inc

Technical Specifications

• Static Pressure Rating: 580 psig
• Size: 3/4 inch
• CV: 7.4 Cv
• Voltage: 24V
• Type: Non-Spring-Return
• End Connections: NPT
• Weight: 2.7 lbs
• Minimum Quantity: 1
