Johnson Controls VG1241BL+923GGA Two-Way Brass Valve with Electric Actuator

Product Description

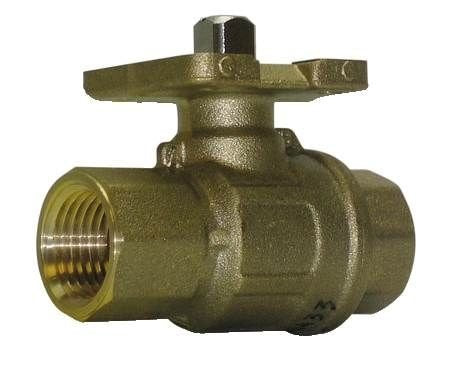

The Johnson Controls model VG1241BL+923GGA is a robust two-way brass valve, equipped with a VA9203 proportional electric actuator. This setup is specifically designed for regulating hot or chilled water flow and low-pressure steam in HVAC systems. It's suitable for use with a variety of Johnson Controls non-spring return and spring-return actuators.

• Constructed from forged brass, ensuring durability and a high static pressure rating of 580 psig.
• Compatible with Johnson Controls VA9104, M9106, M9109, and M9100 Series actuators.
• Optimized for both on/off and proportional control applications.

Product Highlights

This valve assembly provides reliable performance in HVAC systems, offering easy integration and maintenance. It supports a broad range of control types, from floating to proportional, making it a versatile choice for various system requirements.

Product Information

Standard Information

• Weight: 3 pounds
• Dimensions: 3 x 5 x 5 inches

Technical Specifications

• Fluid Temperature Range: 23 to 203 degrees Fahrenheit
• Flow Capacity (Cv): 7.4
• Connection Type: Threaded NPT
• Actuator Type: Proportional, 0 (2) to 10 VDC, with 500 ohm resistor, 0 (4) to 20 mA
• Fail-Safe Mode: Port A Open, Spring Return
