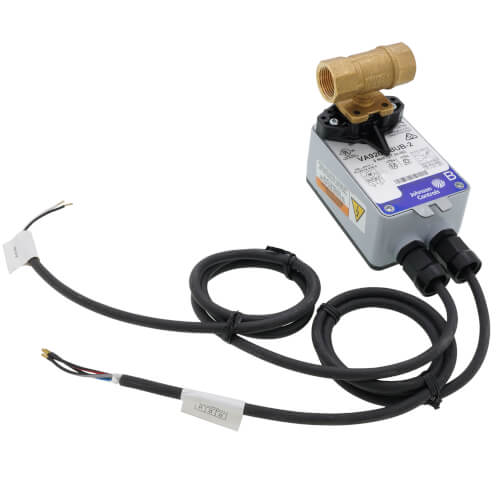

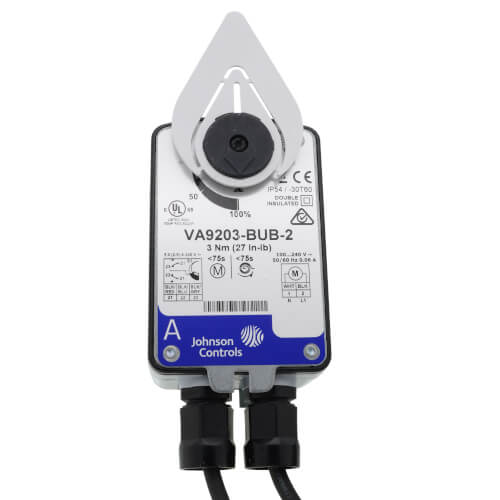

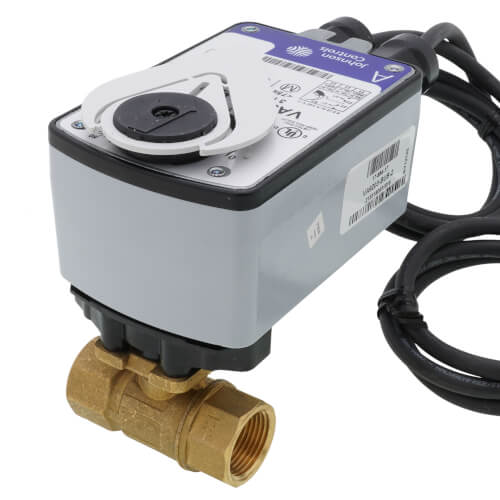

Johnson Controls VG1241BN+943BUB Model VG1241BN Two-Way Plated Brass Trim NPT End Connections Ball Valve with Model VA9203-BUB-2 Spring-Return Closed with One Switch Electric Actuator

Product Description

The Johnson Controls VG1241BN+943BUB valve is a high-performance two-way valve designed to regulate the flow of hot or chilled water in HVAC systems. This valve features a plated brass trim and NPT end connections, paired with a VA9203-BUB-2 spring-return actuator for precise flow control.

• Forged Brass Body provides 580 psig static pressure rating
• Graphite-Reinforced PTFE Seats for better wear resistance
• 500:1 Rangeability for accurate control under all load conditions

Product Highlights

This valve assembly includes a two-way ball valve and electric actuator. It is suitable for controlling the flow of hot or chilled water, and some models can handle low-pressure steam. The brass body ensures durability and a long lifespan.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• MPN: VG1241BN+943BUB
• Product Type: Valve
• Brand: Johnson Controls

Technical Specifications

• Body Pattern: 2-Way
• Actuator Type: Proportional, 0 (2) to 10 VDC, w/ 500 ohm resistor, 0 (4) to 20 mA
• Fail Safe Mode: Non-Spring Return
• Connection Type: Threaded
• Flow Capacity (Cv): 11.7
• Fluid Temperature Range: 23 to 203 degrees Fahrenheit
• Dimensions: 3 inches (H) x 5 inches (D) x 5 inches (W)
• Material: Brass
