Johnson Controls VG1241BN+923GGB Valve Assembly for Optimized HVAC Control

Product Description

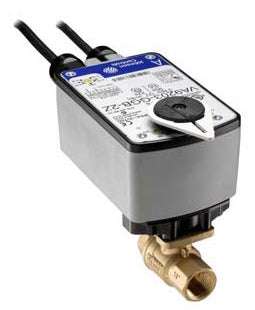

The Johnson Controls model VG1241BN+923GGB comprises a two-way plated brass trim ball valve with NPT end connections and an integrated VA9203-GGB-2Z spring-return open with one switch electric actuator. This setup is designed to efficiently manage the flow of hot or chilled water and, in some models, low-pressure steam within HVAC systems.

• Direct compatibility with Johnson Controls VA9104, M9106, M9109, and M9100 series actuators.
• Optimal for sizes ranging from one-half to two inches (DN15 to DN50).
• Enhanced response and reliability in HVAC systems.

Product Highlights

Constructed from high-grade forged brass, the VG1241BN+923GGB valve offers a static pressure rating of 580 psig, catering to the rigorous demands of commercial HVAC applications.

Product Information

Standard Information

• Operational Pressure Range: Up to 580 psig
• Connection Type: NPT threaded

Technical Specifications

• Valve Type: Two-way ball
• Material: Brass
• Actuator Type: Electric, spring-return
• Flow Capacity (Cv): 11.7
• Temperature Range: 23 to 203 degrees Fahrenheit
