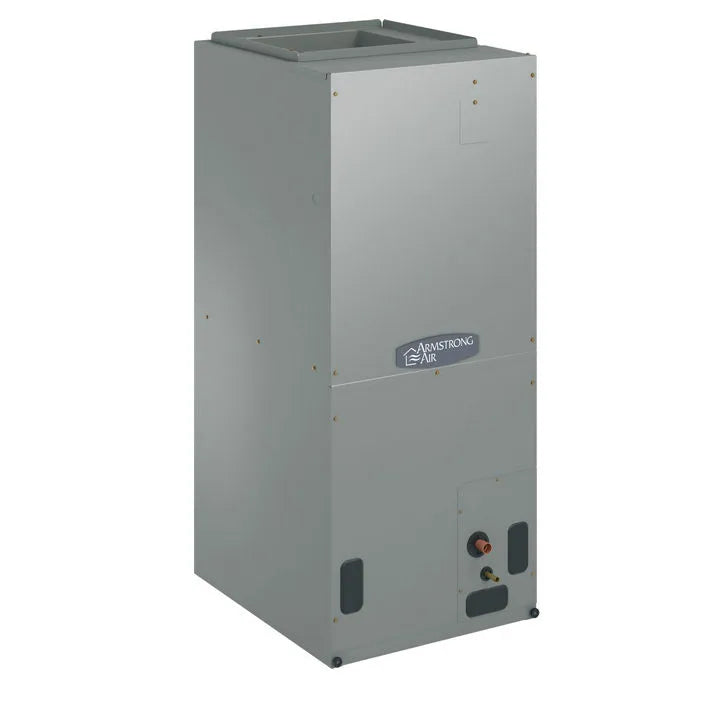

Armstrong Air BCE5E36MA4X-50 3.0 Ton Vertical/Horizontal ECM Constant Torque X13 Air Handling Unit

Product Description

The Armstrong Air BCE5E36MA4X-50 is a three-ton air handling unit designed for both vertical and horizontal installations. This unit features an ECM constant torque motor, which operates efficiently to meet the heating and cooling requirements of residential spaces. With physical dimensions of twenty-one and a half inches in width, fifty-three and five-eighths inches in height, and twenty-two inches in depth, it fits well in various applications.

• Three-ton capacity for residential cooling and heating.
• Efficient ECM motor designed for constant torque performance.
• Versatile installation options in both vertical and horizontal orientations.

Product Highlights

This air handling unit is suitable for a range of residential applications, offering reliable support for heating and cooling systems. The use of advanced ECM technology contributes to improved energy efficiency, resulting in lower operating costs.

Product Information

Standard Information

• Manufacturer: Armstrong Air
• Major Category: HVAC Equipment
• Sub Category: Residential

Technical Specifications

• Model Number (MPN): BCE5E36MA4X-50
• Capacity: 3.0 tons
• Dimensions: 21.5 inches (W) x 53.625 inches (H) x 22 inches (D)
• Weight: 163 lbs
• BTUH: 36000
• Voltage: 208-230/1/60
• Usage Codes: 01|02|11|12|13
