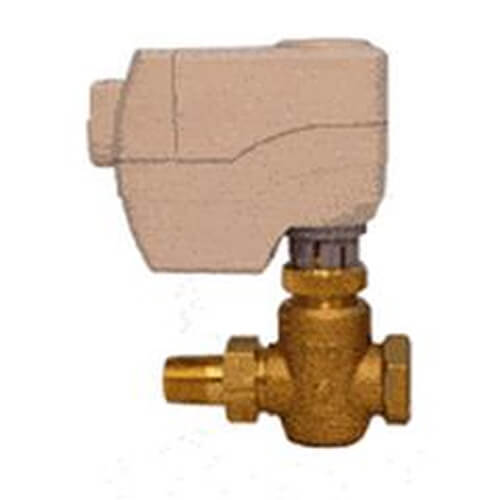

Siemens 262-02054 1/2 NPT x Union Male Powermite MT Series 2-Way Mixing N.O. SS Valve Actuator Assembly 24Vac 1.6 Cv

Product Description

The Siemens 262-02054 1/2 NPT x Union Male Powermite MT Series 2-Way Mixing N.O. SS Valve Actuator Assembly is an essential component in HVAC systems. It is designed for use with pneumatic or electronic actuators with a 7/32-inch stroke and is suitable for controlling hot or chilled water, water-glycol solutions, and steam.

• Direct-coupled universal bonnet
• Female NPT end connections with brass or stainless steel trim
• ANSI Leakage Class IV (0.01% of Cv)

Product Highlights

This valve actuator assembly ensures reliable control in HVAC applications. It operates with a voltage of 24Vac, has a 2-way valve type, and features a spring return mechanism.

Product Information

Standard Information

• Brand: Siemens
• MPN: 262-02054
• Category: Zone Valve Actuators

Technical Specifications

• Voltage: 24Vac
• Valve Type: 2-Way
• Trim: Stainless Steel
• Position: Normally Open
• Cv: 1.6
• Control Signal: 0-10V
• Connection: NPT x Union Male
• Actuator: SSC61.5U
• Mounting: NEMA 1
• Close Off Pressure: 20 psi
• Spring Return
• Valve Size: 1/2in
