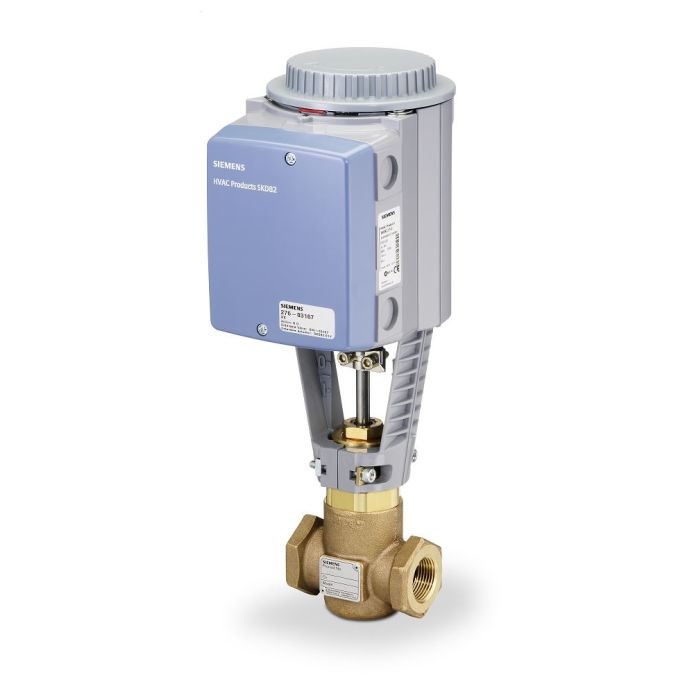

Siemens 275-03060 Globe Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Siemens Globe Valve Assembly, MPN 275-03060, is a two-way valve designed for use in HVAC applications. This valve features a one and one-fourth inch connection and is suitable for various fluids including water, steam, and water-glycol solutions. It operates with a direct coupled actuator that does not use a spring return. This valve supports normally open and three position floating control.

• ANSI Class 250 rated
• Compatible with 24 VAC systems
• Flow characteristic is linear

Product Highlights

The valve is built for reliability in demanding conditions, operating efficiently within a range of five degrees Fahrenheit to one hundred thirty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 275-03060

Technical Specifications

• Service: Water, Steam, 50% Water-Glycol Solutions
• Power Consumption: 13 VA
• Close-Off Pressure: 124 psi
• Flow Characteristic: Linear
• Operating Conditions: 5 F To 130 F (-25 C To 150 C)
