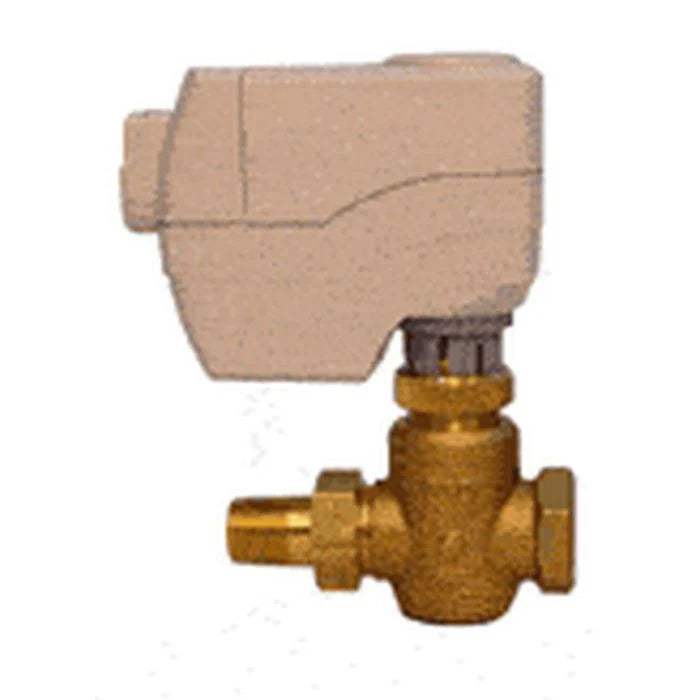

Siemens 262-02009 Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Siemens Globe Valve Assembly, MPN 262-02009, is designed for effective control of water and low pressure steam applications. This 2-way valve is a direct coupled actuator model intended for use with systems requiring modulating control. Key specifications include a size of one half inch and a Cv rating of 2.5.

• ANSI Leakage Class IV (0.01% of Cv)
• Spring return feature
• Compatible with water and low pressure steam

Product Highlights

This assembly is reliable for HVAC applications requiring precision in fluid control.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 262-02009

Technical Specifications

• Housing: NEMA 1
• Service: Water, Water-Glycol Solutions To 50%, Low Pressure Steam <15 psi
• Power Consumption: 2.0 VA
• Close-Off Pressure: 50 psi
• Flow Characteristic: Modified Equal Percentage
• Operating Conditions: 34 F To 122 F (1 C To 50 C)
• Electrical Connection: Terminal Block For Plenum Cable
