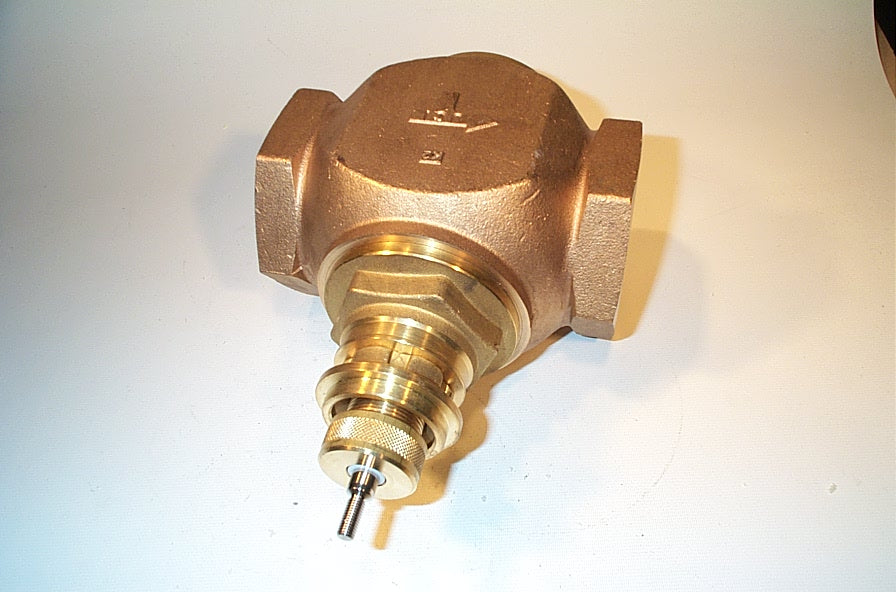

Johnson Controls VG7443ST+823E00 Series VG7000 Globe Valve Pneumatic Actuator

Product Description

The Johnson Controls Series VG7000 Globe Valve, model VG7443ST+823E00, is engineered for precise control of hot or chilled water and up to 100 psig saturated steam. Its robust construction includes a stainless steel trim and is paired with an MP82 Series Pneumatic Actuator for reliable performance.

• Designed for industrial applications including HVAC systems.
• Spring-loaded PTFE and elastomer V-rings ensure durable sealing.
• Supports a fluid temperature range from 35 to 338 degrees Fahrenheit.

Product Highlights

This valve is built to handle demanding conditions with a valve body static pressure rating of ANSI Class 250. It is suitable for both factory or field assembly, accommodating the needs of installation flexibility.

Product Information

Standard Information

• Maximum Supply Air Pressure: 25 psig (172 kPa)
• MPN: VG7443ST+823E00

Technical Specifications

• Brand: Johnson Controls
• Type: Valve
• Product Type: HVAC Controls
• Material: Stainless Steel Trim
• Actuator Type: Pneumatic, MP82 Series
• Static Pressure Rating: ANSI Class 250
• Optional Positioner: V-9502-95 (change to 01 at end of code)
• Application: Industrial, HVAC
