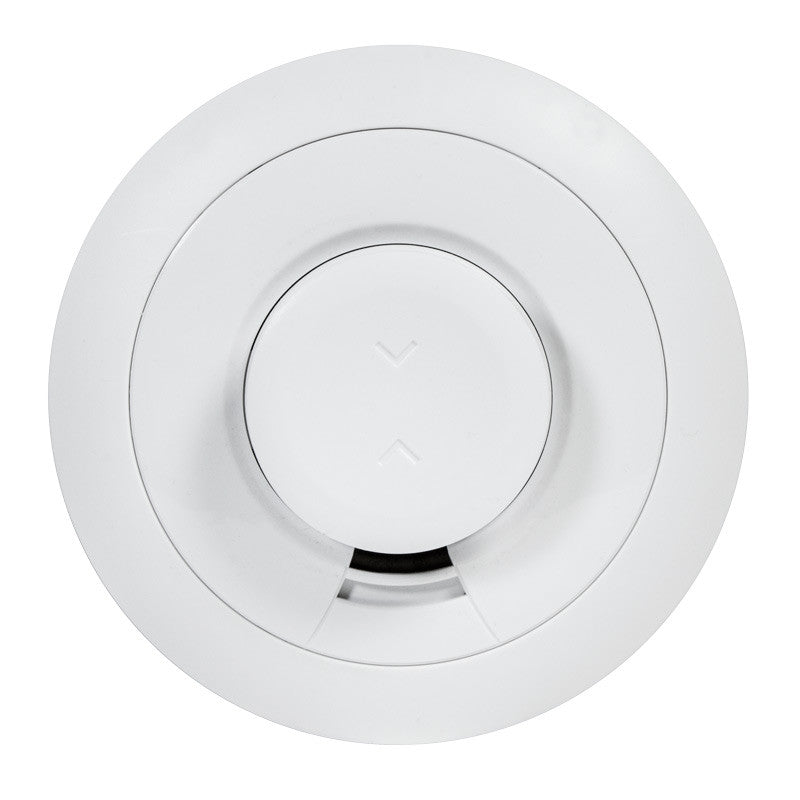

2Gig 2Gig-SMKT8-345 Smoke/Heat/Freeze Sensor

Product Description

The 2GIG 2GIG-SMKT8-345 Smoke/Heat/Freeze Sensor detects smoke, rapid temperature rise, and extreme temperatures. Meeting UL217 8th edition and UL268 7th edition standards, it recognizes smoke from synthetic materials and minimizes false alarms using advanced detection algorithms. The sensor features an optical smoke chamber and provides audible alarms greater than 85 dB at 10 feet.

• Meets new UL217 8th edition and UL268 7th edition requirements
• Designed to recognize smoke from synthetic materials
• Monitors and reports on excessive temperature variations

Product Highlights

Offers long-term, dependable fire and temperature protection with a long-lasting battery and easy installation.

Product Information

Standard Information

• Brand: 2GIG
• Manufacturer Part Number: 2GIG-SMKT8-345

Technical Specifications

• Wireless Signal Range: 350 ft (106.7 m) open air with Wireless Control Panel
• Transmitter Frequency: 345 MHz
• Compatibility: 2GIG-SMKT8-345 works with 2GIG Panels
• Supervisory Interval: 70 minutes
• Audible Alarm: Greater than 85 dB at 10 ft (3 m) minimum
• High Temperature Level: 134 degrees F ~ 4 degrees F
• High Temperature Rate of Rise: Above 104 degrees F and increases 15 degrees F or more in one minute
• Low Temperature Level: 40 degrees F ~ 4 degrees F, reset at 45 degrees F ~ 4 degrees F
• Operating Temperature: -40 to 100 degrees F (-40 to 37.8 degrees C)
• Operating Relative Humidity: 15% to 95%, non-condensing
• Batteries: 2 x CR123A
• Regulatory Listings: UL268 7th Edition, CAN/ULC S529 7th Edition, CSFM
• Projected Battery Life: 10 years
• Panel Compatibility: 2GIG GC2, 2GIG GC3, 2GIG Edge, IQ Panel 2+ 345Mhz Version, IQ Panel 4 345Mhz Version
