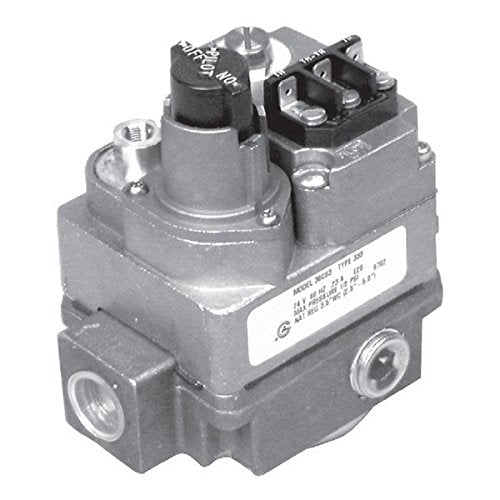

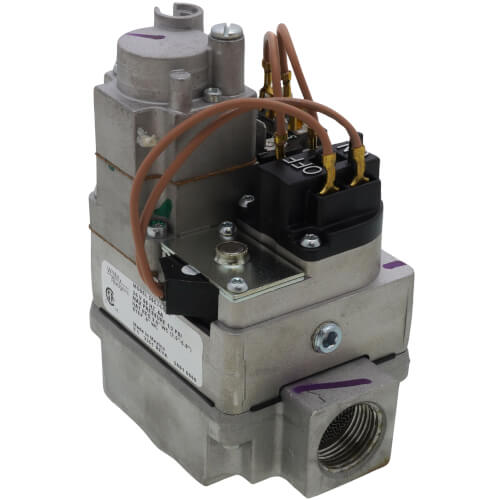

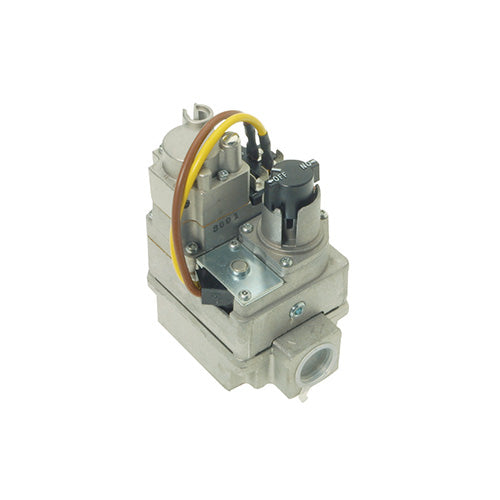

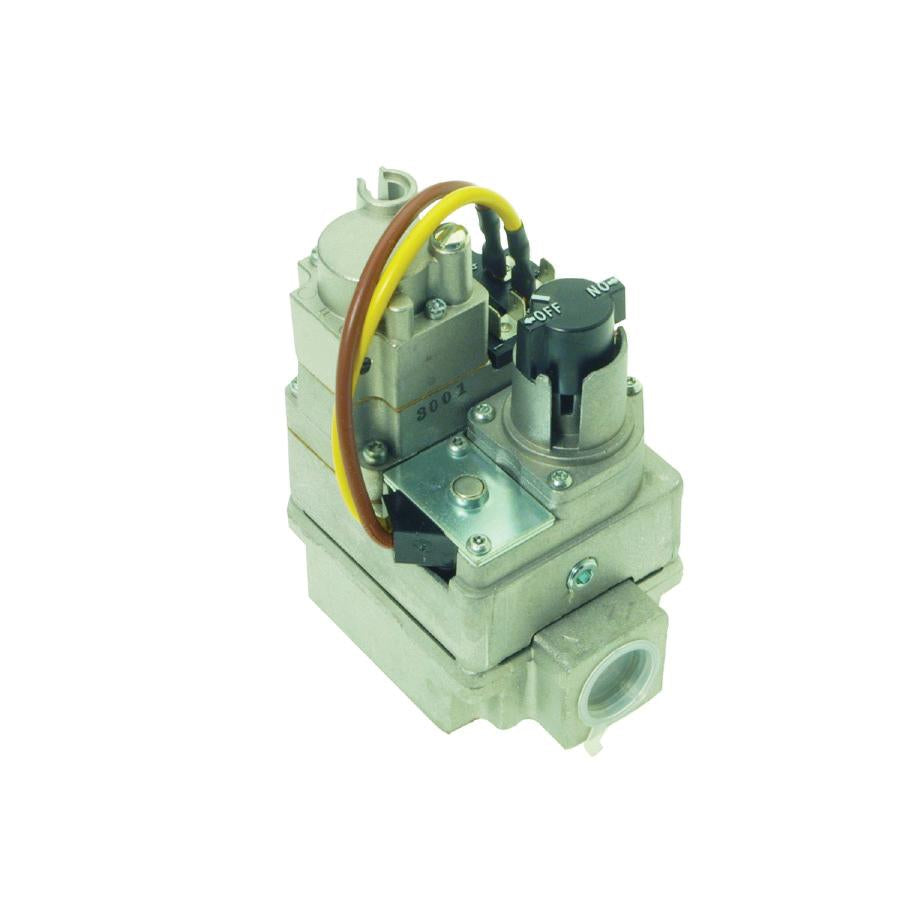

White-Rodgers 36C74-913 Series 36C Step Open Natural Gas Valve, 3/4 inches x 3/4 inches Pipe, 24Vac

Product Description

The White-Rodgers 36C74-913 Series 36C is a step open natural gas valve with a 3/4" x 3/4" pipe size and a 24Vac voltage rating. This gas valve is designed for use in industrial and commercial applications. It features a 0.9 step and a 3.5 full outlet pressure. It is suitable for various industrial and commercial applications.

• 3/4" x 3/4" NPT connection
• 0.9 step
• 3.5 full outlet pressure

Product Highlights

This White-Rodgers gas valve offers reliable and efficient operation and easy installation for various industrial and commercial applications.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 36C74-913
• Country of Origin: United States

Technical Specifications

• Valve Type: Gas valve
• Brand: White-Rodgers
• Series: 36C
• Type: Step Open Natural Gas Valve
• Pipe Size: 3/4" x 3/4"
• Temperature Range: -40 Degree - 175 Degree F
• Voltage: 24Vac
• Item Number: 36C74-913
• Input Supply Rating: 24 Volt AC 60 Hertz 0.23 Amp
• Applicable Standard: CSA (Canada and US)
• Application: HSI/DSI, Intermittent Ignition System
• End Connection: Female Threaded x Female Threaded
• Pressure Rating: 1/2 PSI
• Nominal Size: 3/4 Inch x 3/4 Inch
• Fuel Type: Natural Gas
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Ignition Type: Direct Spark, Hot Surface, Intermittent
• Nominal Capacity: 280000 Btu/hr for AGA Standard Natural Gas 1000 Btu/cu-ft at 1 in Pressure Drop
• Temperature Rating: -40 to 175 deg F Ambient
• Amperage Rating: 0.23 A
• Body Material: Aluminum
• Body Style: Straight Thru
• Electrical Rating: 24 Vac, 60Hz
• Inlet Connection: 3/4" NPT
• Outlet Connection: 3/4" NPT
• Side Taps: No
• Opening Style: Step Open
• Regulator Setting [W.C.]: NG: 0.9" (Low) NG: 3.5" (High)
• Regulator Adjustment Range [W.C.]: NG: 2.5 to 5.0"
• System Type: Direct Spark Ignition (DSI) Hot Surface Ignition (HSI) Intermittent/Proven Pilot
• Country of Origin (subject to change): United States
