Icm Controls Icm304c Defrost Control Replacement For Icp 1069364

Product Description

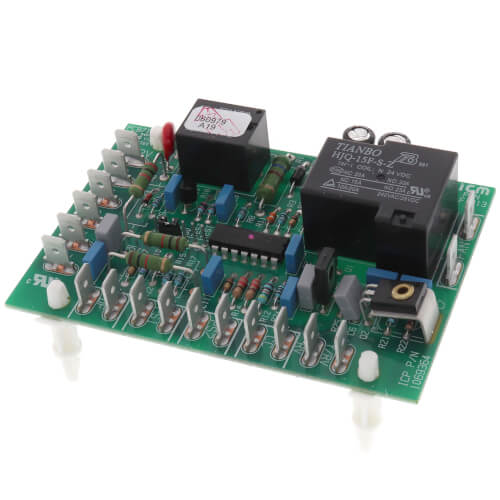

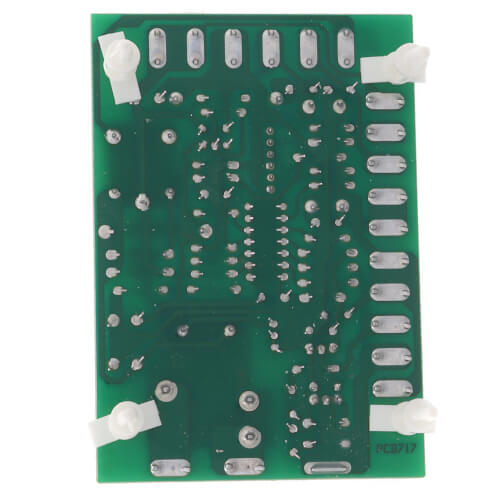

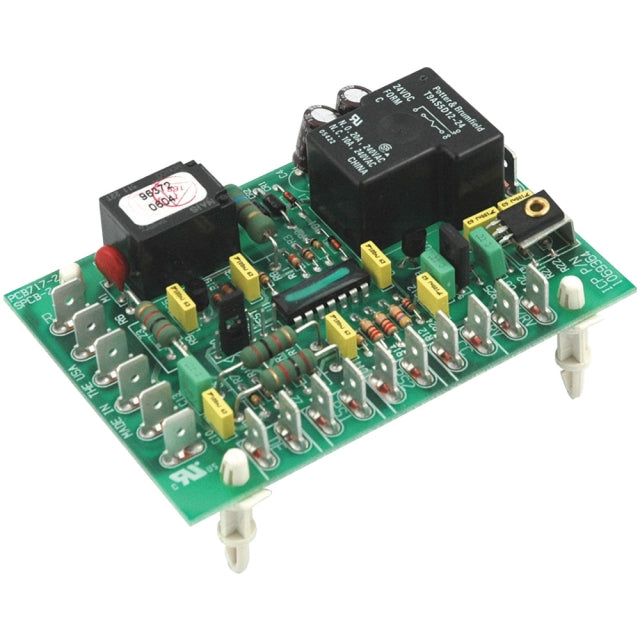

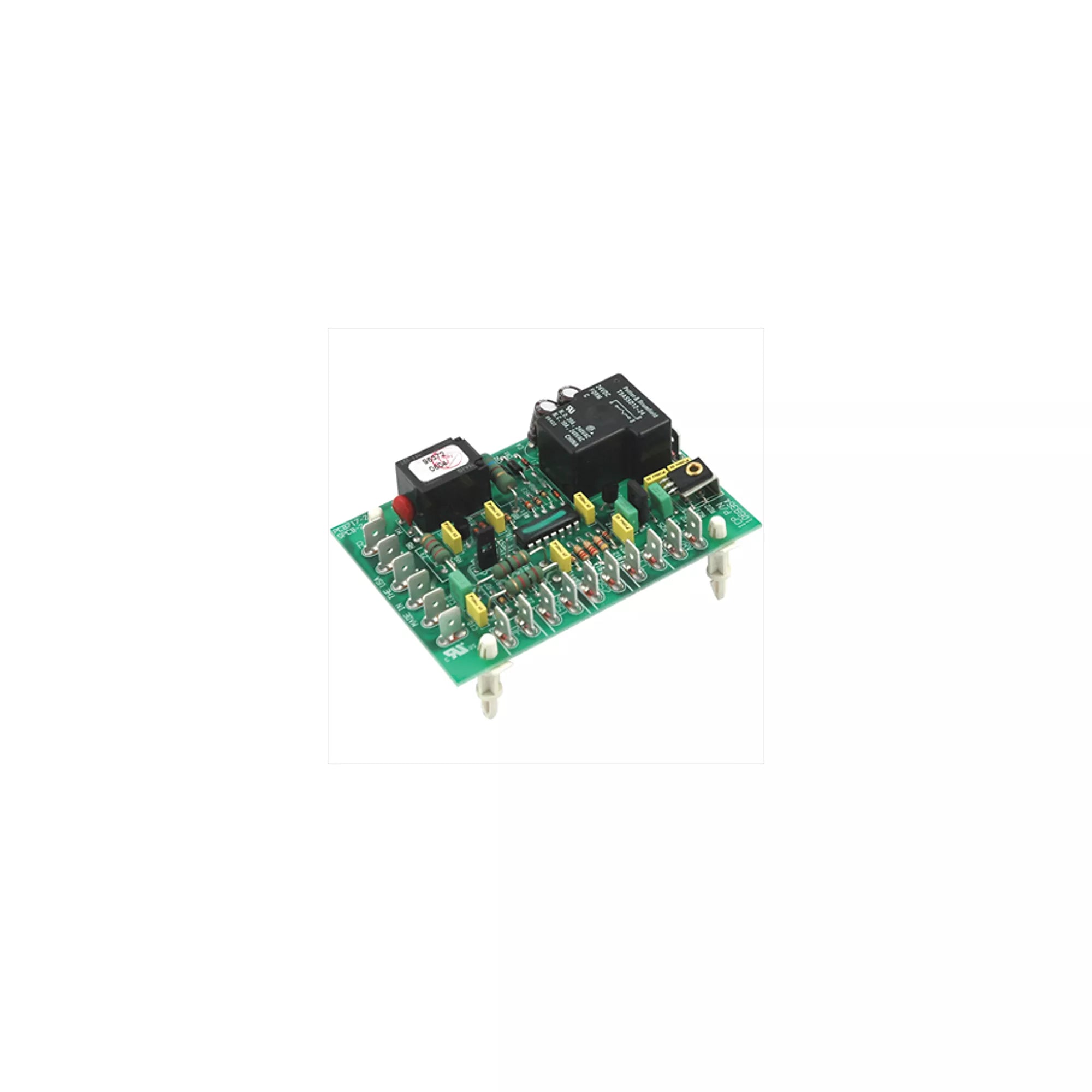

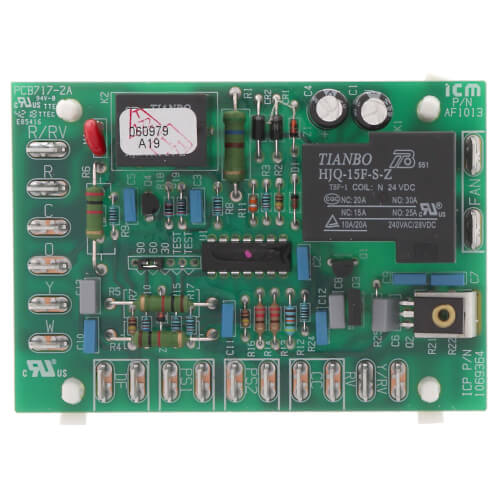

The ICM CONTROLS ICM304C defrost control is a direct replacement for ICP 1069364. It features high power relay outputs for 1/2 HP fan or strip heat. The defrost control integrates multiple time and temperature defrost functions onto a conformally coated, open board package. It has a fixed 10 minute defrost time and pin selectable intervals of 30/60/90 minutes.

• Direct replacement for ICP 1069364
• High power relay outputs for 1/2 hp fan or strip heat
• Pin selectable intervals: 30/60/90 minutes

Product Highlights

The ICM304C defrost control is a cost-effective solution with integrated time and temperature defrost functions.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM304C
• Country of Origin: USA

Technical Specifications

• Brand: ICM Controls
• UPC: 800442000787
• MPN: ICM304C
• Voltage: 18/30 VAC
• Frequency: 50-60 Hz
• Power Consumption: 1 watt maximum
• Strip Heat, Reversing Valve Outputs: 24 VAC, 1 amp
• Defrost Time: Fixed 10 minutes (+/-5%)
• Anti-Short Cycle Time (Fixed): 3 Minutes
• Power on Reset Time: 0-5 Seconds
• Interval Time Between Defrosts: Pin-selectable 30/60/90 min
• Operating Temp Range: -40° to +167°F
• Replaces: 1069364
• Item: Defrost Control Board
• Mounting Type: Surface Mount, Screw, Plastic Standoff
• Used On Item: Heat Pump
• Applicable Standard: UL (Canada and US)
• Output Configuration: SPDT
• Contact Rating: 20 Amp at 240 Volt AC (NO), 10 Amp at 240 Volt AC (NC)
• Interval Time Between Defrost: 30/60/90 Minute Pin Selectable
• SKU: ICM304C
• Category: Control Board
