Product Description

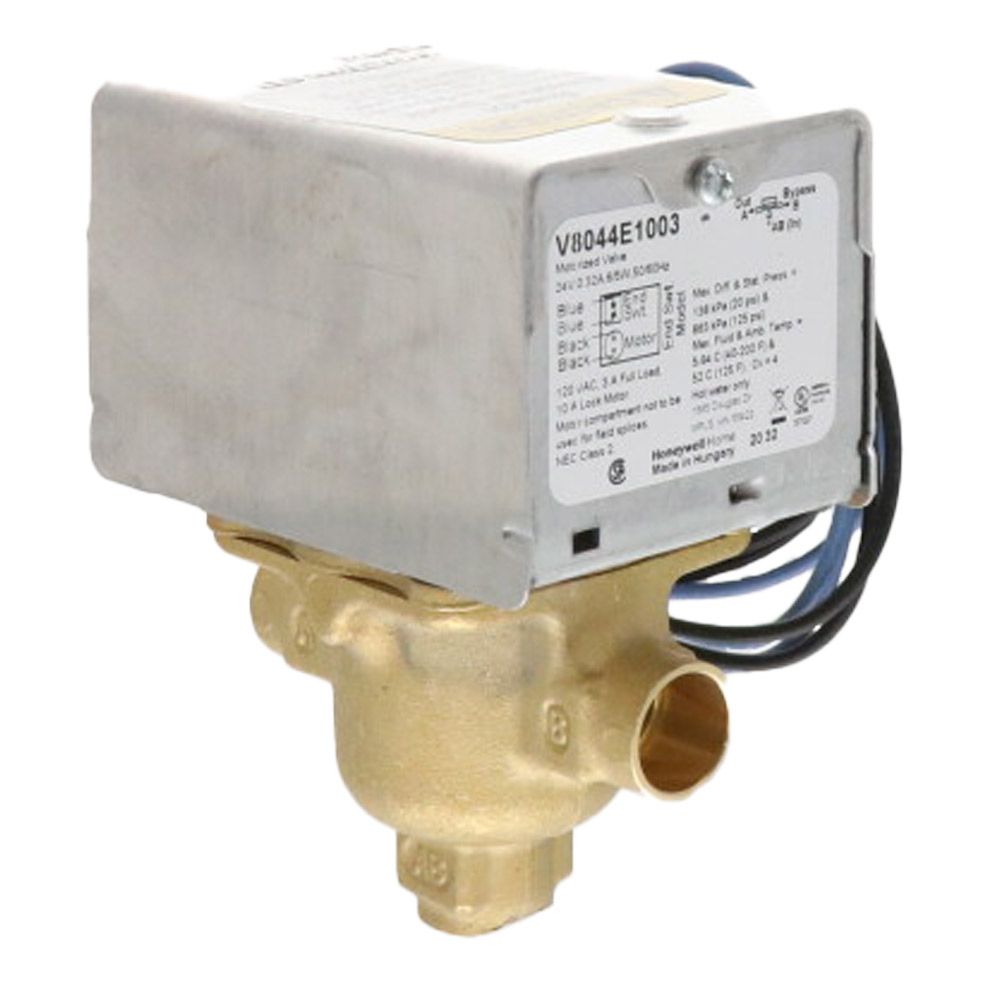

The Honeywell V8044E1003 Zone Valve is designed for hydronic heating systems, providing efficient and reliable flow control. This 1/2 inch sweat zone valve operates on a 24V system and features a three-way diverting configuration, making it a versatile solution for your heating management needs.
- Manual opener for valve operation during power failure, automatic return post-restoration
- No disassembly required for installation, simplifies maintenance
- Compact design facilitates space-efficient installation
Product Highlights
Built with a brass body and stainless steel stem, the Honeywell V8044E1003 ensures durability and a long operational lifespan. It supports temperatures ranging from 40 to 200 degrees Fahrenheit, and pressures up to 125 psi.
Product Information
Includes an actuator and valve assembly with SPST, NO contact configuration and a power consumption of 7.7 volt-amp.
Technical Specifications
-
Brand: Honeywell
-
MPN: V8044E1003
-
Type: Zone Valve
-
Connection: 1/2 inch Sweat
- Electrical Input: 24V AC at 50/60 Hz, 0.32 Amp
-
Pressure Ratings: 20 psi Close Off, 125 psi Static
- Material
: Brass (Body/Seat), Stainless Steel (Stem)-
Dimensions: 3-1/2 inches Width x 2-3/8 inches Depth x 4-5/8 inches Height
