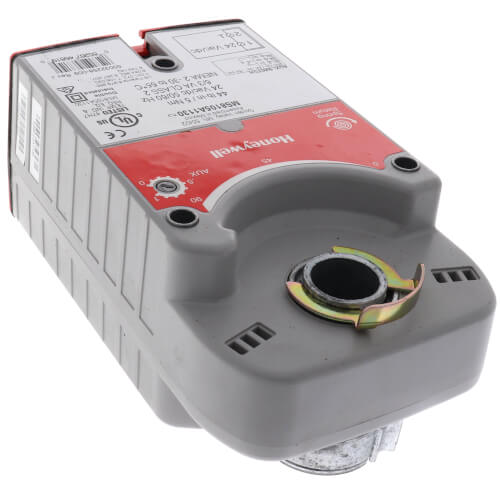

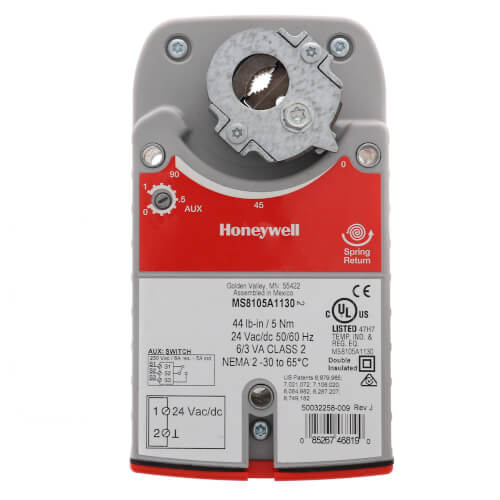

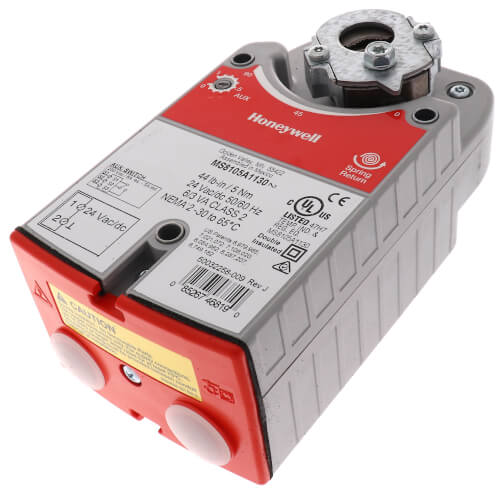

Honeywell MS8105A1130 Two-Position Actuator 44 lb-in Spring Return

Product Description

The Honeywell MS8105A1130 is a robust spring return direct-coupled actuator designed for precise control of air dampers, air handlers, ventilation flaps, louvers, and ball valves in commercial HVAC systems.

• Efficient operation with 44 lb-in torque and a 95-degree stroke.
• Equipped with a self-centering shaft adapter and internal switch for versatile use.
• Durable construction with built-in mechanical end limits, offering reliable performance in demanding environments.

Product Highlights

This actuator is engineered to facilitate two-position (SPST) control, suitable for varying industrial applications. It features a brushless DC submotor with electronic stall protection, enhancing longevity and safety.

Product Information

Technical Specifications

• Control Signal: Two-position, SPST
• Fail Safe Mode: Spring Return
• Supply Voltage: 24 VAC/DC
• Torque: 44 lb-in
• Actuator Type: Damper, Valve
• Dimensions: Height: 7-1/2 inches, Width: 3-5/8 inches, Depth: 3-5/32 inches
