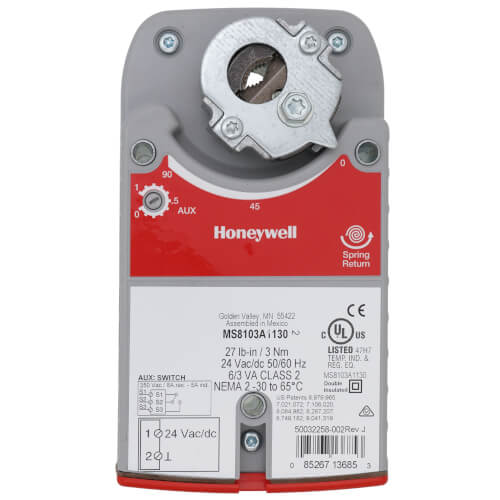

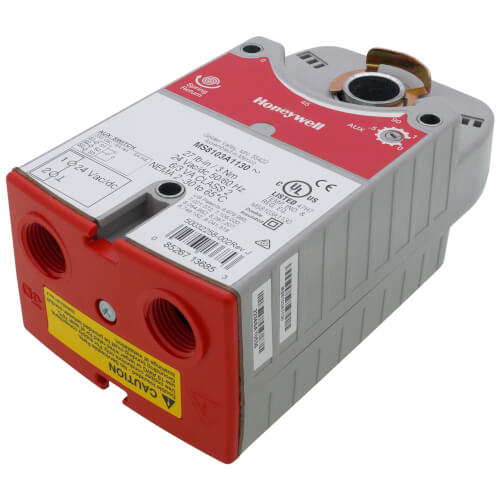

Honeywell MS8103A1130 Electric Actuator 27 in-lb SPST 24V

Product Description

The Honeywell MS8103A1130 Electric Damper Actuator is engineered with robust functionality for reliable performance in HVAC systems. This actuator controls air dampers, ventilation flaps, louvers, and valves to ensure efficient airflow management.

• Delivers 27 inch-pounds of torque with a spring-return mechanism ensuring reliable operation after power interruptions.
• Supports two-position control compatible with SPST setups.
• Designed for direct mounting, streamlining installation processes.

Product Highlights

Equipped with a self-centering shaft adapter, the Honeywell MS8103A1130 accommodates a wide range of shaft sizes. This feature, along with the inclusion of an internal end switch and accessibility options for connectivity, makes it a versatile choice for various HVAC applications. The durable plastic construction includes built-in mechanical end limits, increasing the unit's lifespan.

Technical Specifications

• Control Signal: SPST, Two position
• Torque: 27 in-lbs
• Voltage: 24V AC/DC
• Fail-safe Mode: Spring Return
• Operating Temperatures: -22°F to 149°F
• Dimensions: Depth 3 5/32 inches, Width 3 55/84 inches, Height 7 1/2 inches
• Weight: 3.62 lbs
